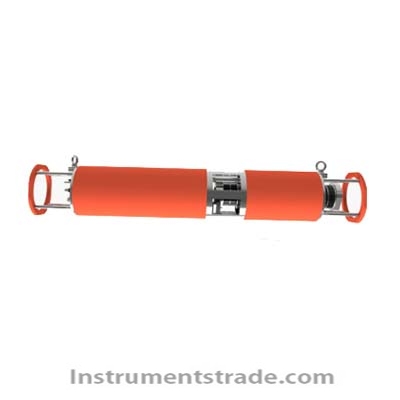

BT Inline300 Intelligent Underwater Laser Sand Measuring Instrument

Product ID：HQTqita007

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT Inline300

Brand NameDDBAITE

Payment TermsTT，PAYPAL，Alibaba.com Pay

BT Inline300 Intelligent Underwater Laser Sand Measuring Instrument
Introduction:
After placing BT Inline300 into water to the set depth, automatic testing of particle size distribution and sediment content begins. During the work process, the distance of the testing area can be automatically adjusted according to the sediment concentration, with a range of 0.5-50 mm. The applicable sediment concentration range is 0.001-100 kg/m ³. The test data can be directly transmitted to the PC in real-time in wired or wireless mode. In offline mode, the test data will be saved in the storage card. After landing, the instrument will be connected to the PC to read the test data.
characteristic:
1 . Innovative adaptive technology for water bodies with different sediment concentrations
2.Innovative automatic deduction background technology
3.Automatic lens cleaning system
4.Flexible and diverse signal transmission methods
5. Self water pressure compensation device
6.Intelligent software and systems
7.Good accuracy and repeatability (particle size distribution)
8.Accuracy of sediment concentration analysis
Technical parameters:

Range of sediment concentration	0.001-100kg/m ³ (limit value depends on particle size, etc.)
Particle size measurement range	0.1-2000μm
Particle size accuracy error	≤ 2% (National standard sample D50)
Particle size repeatability error	≤ 2% (National standard sample D50)
monitoring items	Particle size distribution, sediment content, water depth, water temperature, etc. can be directly measured without prior calibration.
Lens cleaning	Automatic cleaning
background	Adopting background independent data processing patented technology, without the need for pre testing the background
Optical path range	0.5-40mm (adaptive)
laser light source	High power fiber polarized laser
detector	80 pieces (forward+lateral), detection angle 0.0163-42 °
Maximum water depth	200m (customizable for larger water depths)
Suitable for water temperature	0-55℃
Depth sensor	0-200 meters, with an accuracy of 0.01 meters
temperature sensor	-20-85 ℃, accuracy 0.01 ℃
protection grade	IP68
Meet standards	GB/T15966-2017 "Basic Parameters and General Technical Conditions for Hydrological Instruments"
Built in battery standby time	≥ 24 hours
Built in memory capacity	16GB
Working mode	① Wired (real-time transmission through signal lines) ② Wireless (real-time transmission via 4G network) ③ Offline (the instrument measures underwater and exports data after exiting the water)
Using Zones	Testing of sediment in rivers, lakes, and oceans

Introduction:
After placing BT Inline300 into water to the set depth, automatic testing of particle size distribution and sediment content begins. During the work process, the distance of the testing area can be automatically adjusted according to the sediment concentration, with a range of 0.5-50 mm. The applicable sediment concentration range is 0.001-100 kg/m ³. The test data can be directly transmitted to the PC in real-time in wired or wireless mode. In offline mode, the test data will be saved in the storage card. After landing, the instrument will be connected to the PC to read the test data.
