Sales BT-3D video microscope，Manufacturer

Position: Home > > Optical instruments and equipment > Biological and medical microscope > Video microscope > BT-3D video microscope

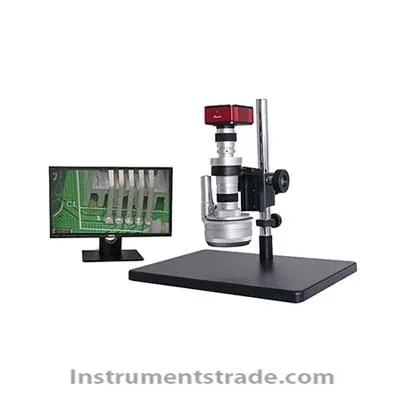

BT-3D video microscope

Product ID：GSXshipin005

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBT-3D

Brand NameSZBAITEWEI

Payment TermsTT，PAYPAL，Alibaba.com Pay

BT-3D video microscope
Introduction:
The BT-3D series electric 3D video microscope is a three-dimensional rotating observation and control all-in-one machine designed specifically for detecting angles that cannot be detected by conventional microscopes, with a 360 degree observation effect. High depth of field design, balancing resolution and depth of field optimization for image quality. Using LED lighting to meet the needs of observing different objects. The optional observation angles are: 45 degrees; Imported DC motor with long service life, stable operation, and low noise. Single chip integrated control, beautiful, practical, and easy to control performance upgrades.
Technical parameters:

model	BT-3D
Viewing angle	45 ° 3D/2D dual observation
Magnification factor	25X~150X
Field of view range	10mm * 10mm
work distance	20mm for 3D observation and 100mm for 2D observation
Variable magnification range	0.7X ~ 4.5X
interface	HDMI/optional USB camera
resolution	1920 x 1080/optional 3840 x 2160 8 megapixel camera
Target size	1/2 color/black and white
Output frame rate	60FPS high-speed operation without trailing shadows
Focusing frame	Coarse adjustment of focusing handwheel, adjustable tightness of focusing handwheel, lifting range of 50mm
Working platform	320 * 280 (mm) black metal/customizable in any size
light source	Built in LED ring light
Independent controller	One click start stop; Stop, forward rotation, and reverse rotation are controllable; Adjustable lighting brightness
monitor	22 inches/27 inches
Measurement function	Measurement: point spacing, point line spacing, line spacing, center distance, Dim sum distance, center distance, angle, arc, circle, rectangle, polygon, polyline Auxiliary functions: can take photos, record videos, and save to a USB drive. Annotationable, automatic edge finding, local zoom in, data export and other functions
Camera function	Can take photos and export data to a USB drive

Introduction:
The BT-3D series electric 3D video microscope is a three-dimensional rotating observation and control all-in-one machine designed specifically for detecting angles that cannot be detected by conventional microscopes, with a 360 degree observation effect. High depth of field design, balancing resolution and depth of field optimization for image quality. Using LED lighting to meet the needs of observing different objects. The optional observation angles are: 45 degrees; Imported DC motor with long service life, stable operation, and low noise. Single chip integrated control, beautiful, practical, and easy to control performance upgrades.
