Sales BSC-1000B2 biosafety cabinet,Manufacturer

Position: Home > > Life science instrument and equipment > Biological engineering equipment > Biological safety cabinet > BSC-1000B2 biosafety cabinet

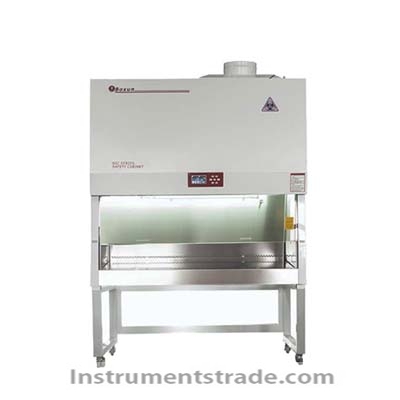

BSC-1000B2 biosafety cabinet

Product ID：SHGCaqg025

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBSC-1000B2

Brand NameSHBOXUN

Payment TermsTT，PAYPAL，Alibaba.com Pay

BSC-1000B2 biosafety cabinet
Introduction:
A biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol dispersion of certain hazardous or unknown biological particles during experimental operations. Its working principle is mainly to draw air out of the cabinet, maintaining a negative pressure state inside, and protect staff through vertical airflow. It is mainly used in fields such as biomedicine, food, inspection and testing, inspection and quarantine, agriculture, forestry, animal husbandry, fishery, environmental protection, and scientific research.
Features:
1. The box structure adopts a split-type, dismountable frame, equipped with mobile casters and balance adjustment screw rods for convenient handling and positioning;
2. A large-screen LCD Chinese display screen for convenient and intuitive visualization of various measured parameters;
3. Intelligent constant wind speed technology with automatic tracking and output control adjustment functions;
4. Imported original American wind speed sensor with sensitive response and high accuracy; 5.
Filter pre-failure and damage alarm technology, where the control circuit can automatically activate audible, visual, and Chinese visual alarm prompts when the filter is nearing failure or has already failed, and due to increased wind resistance and filter damage;
6. Interlocking of sterilization lamp and lighting lamp, with ultra-high sound and light alarms at safe positions on the front window, and a self-stopping device for the air supply fan when the front window is closed;
7. HEPA high-efficiency filter with filtration efficiency of over 99.99% for 0.3μm dust particles;
8. The visible front window adopts a 5° tilt angle design that meets ergonomic principles, reducing glare over a wide range;
9. Safe and movable front window glass with good explosion-proof, shatter-proof, and UV resistance functions; 10.
The working chamber is made of SUS304 brushed stainless steel material, with an integrated rounded corner design on the lining wall, facilitating cleaning and eliminating dead spaces and residues;
11. A movable stamped and formed SUS304 brushed stainless steel worktop, sturdy, durable, and easy to clean; 12.
Standard configuration includes an AC socket with a splash-proof protective cover, and reserved water and gas interfaces;
Technical Specifications:

model	BSC-1000B2	BSC-1360B2
Display control points	LCD display screen, wind speed display, pressure display
suitable number of people	single person	two people
cleanliness level	Grade 100 (ULPA filter with a filtration efficiency of 99.9995% for 0.3um particles)
Average inflow velocity (m/s)	0.55	0.55
Average flow velocity of descending airflow (m/s)	0.33	0.33
Control accuracy of descending airflow (m/s)	±0.015
Noise level db	≤67
Vibration half-peak value μm	≤5
Average lighting Lux	≥650
Ambient temperature ℃	10-30
Relative temperature (℃)	≤70%（25℃）
Atmospheric pressure Pa	80-105
Personnel protection	When tested using the potassium iodide (KI) method, the protection factor of the front window operating port should not be less than 1×105
Protection of tested products	Colony count ≤ 5 CFU per instance
Cross-infection prevention	The bacterial count of the impact sampler is ≤2 CFU per sampling
Work area dimensions (length x width x height) mm	1000X500X640	1300X500X640
Overall dimensions (length X width X height) mm	1120X895X2340	1420X895X2340
Supply air filter specifications (length X width X height) mm	1026X606X70	1326X606X70
Exhaust air filter specification (length X width X height) mm	482X515X90	782X515X90
Fluorescent lamp specification W	30	40
Number of fluorescent lamps (pcs)
UV lamp specification W	18	30
Number of UV lamps (unit)	1
Voltage V	AC 220V±10%/50Hz±2%
Power (kW)	2.1	2.2
