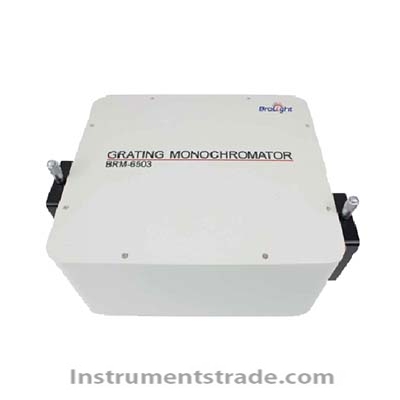

BRM-650 grating monochromator

Product ID：FGgs018

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBRM-650

Brand NameHZBOYUAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

BRM-650 grating monochromator
Introduction:
The BRM-650X series is a pre-configured 250mm focal length grating monochromator, covering an ultra-wide spectral range from 200 to 2200nm. Each monochromator is fully assembled and calibrated at the factory, making it a standard turnkey instrument. The BRM-650X adopts an M-type optical path design, providing excellent optical resolution for precision applications.
Scope of application
Accurate spectral responsivity measurement
UV-Visible-Near Infrared Characteristic Analysis
Fluorescence/Raman spectroscopy analysis
Absorption/transmission spectroscopy analysis
Single-wavelength power calibration
Reference light source verification
Photoelectrochemical reaction monitoring
Spectral detection of enzyme activity
Features:
1. Automatic grating switching: ensures optimal diffraction efficiency;
2. Modular scalability: can be equipped with filter wheels, etc., to support higher-demand expansion applications;
3. Coaxial grinding turntable: supports 1 to 4 gratings.
Technical parameters:

model	BRM-6501	BRM-6502	BRM-6503
Grating parameters	Number of scribed lines: 1200 lines Shine wavelength: 500nm	Number of scribed lines: 1200 lines Shine wavelength: 500nm/800nm	Number of lines: 1200 lines/600 lines Shine wavelength: 500nm/800nm/1800nm
wavelength range	200~1100nm	200~1100nm	200~2200nm
Wavelength accuracy	≤±0.5nm	≤±0.5nm	≤±1nm
focal length	250mm
stray light	＜0.0002
Electronic shutter	Standard configuration, supports remote control
Filter wheel	Optional, electric control
size	331×295×167mm
