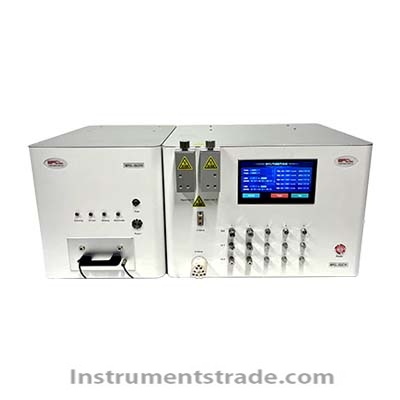

BPCL-GLC15/21 Gas-sensitive Photoelectric Sensing Measurement System Introduction: The BPCL-GLC15/21 gas-sensitive photoelectric sensing measurement system is primarily utilized for in-situ optical and electrical sensing measurements between gases and materials. It is equipped with a standard gas reaction chamber, featuring an interdigitated electrode (with a surface capable of attaching research materials) that allows for precise temperature control, reaching up to 400℃. The instrument is equipped with an ultra-weak light detection system and an electrochemical measurement system. At specific temperatures, it measures the optical signals (cataluminescence/thermoluminescence) from the reaction between gases and materials on the surface of the interdigitated electrode, as well as the electrical signals (R-t/i-t) from the interdigitated electrode. Additionally, it can be used in conjunction with the BPCL-GDS series gas dispensing system. The instrument finds applications in cataluminescence, thermoluminescence, cyclic luminescence, gas-sensitive photoelectric sensing, and thermoluminescence. Its application areas include drug analysis, food analysis, environmental monitoring, and materials science. Technical Specifications: 1. High-temperature gas reaction chamber (1) Inlet air flow rate: 300-1500 mL/min (2) Reaction electrode: Gold-plated interdigitated electrode, with dimensions of 25*25 mm, capable of in-situ measurement of optical and conductivity signals generated by the reaction of materials with gas on the surface of the interdigitated electrode. (3) Outer dimensions of the reaction chamber: 80*55*13 mm (4) Temperature control range: room temperature to 400℃, accuracy: within 2% (5) Heating rate: From room temperature to 250℃, the fastest rate is 1 minute (6) Real-time feedback of reaction temperature (7) Light window area: 25*25 mm 2. Cataluminescence measurement system (1) Detector: Downward-looking photomultiplier tube, photon pulse measurement. (2) Detection lower limit: It can provide a counting rate of 10,000-20,000 per second for a weak light source of 10^-13W. (3) Long-term stability of the instrument: RSD ≤ 1.5%, tested using a standard light source. (4) Wavelength range: 300-650 nm (5) Instrument counting analysis range: covering five orders of magnitude (6) Sampling interval: 0.01-10000 ms, adjustable by software. (7) Filter measurement method: drawer filter replacement method (8) Filter: Bandpass filter, diameter 58mm, with aluminum alloy frame, wavelengths of 425nm, other wavelengths available upon request. 3. Electrochemical measurement system (1) Electrode: Interdigitated electrode (2) Maximum potential range: ±10V (3) Cell voltage: ±13V (4) Potential rise time: 0.5us (5) Potential scanning range: ±10V (6) Potential resolution: 0.0015% of the potential scanning range (7) Potential measurement accuracy: ±0.5mV (8) Measurement current range: ±10pA~±0.25A, 9 ranges (9) Measurement current resolution: 0.0015% of the current range (10) Current measurement accuracy: 1% of the current range (11) Input bias current: <10pA (12) Maximum sampling rate: 500,000 data points per second (13) Maximum data length: 6,000,000 data points (14) Minimum sampling interval: 10us (15) Self-check: Internal resistance self-check within 9 gear positions (16) Measurement method: i-t / R-t / LSV 4. Analysis system (1) Communication method: USB, with a maximum communication rate of 480 Mbit/s, and plug-and-play functionality. (2) Software Interface: Settings for parameters such as high-pressure output, signal acquisition rate, gas flow rate, programmed temperature rise in the reaction chamber, and temperature in the vaporization chamber. It features automatic background subtraction, automatic range switching for acquisition count rate, real-time display of data point kinetic curves, and real-time display of acquisition time, count rate, and total count. (3) Raw data: Optional formats include EXCEL and TXT, with automatic or manual saving options. (4) Analysis platform: It can display data in the form of point charts, line charts, and curve charts, with the ability to zoom in, zoom out, and pan the coordinates. It also features curve overlay, curve smoothing, curve fitting (exponential, logarithmic, polynomial, etc.), Gaussian function fitting (Gaussian), Lorentz function fitting (Lorentz), Fourier transform, manual peak search, manual integration, etc. Furthermore, it can regenerate new raw data and save it.
Introduction: The BPCL-GLC15/21 gas-sensitive photoelectric sensing measurement system is primarily utilized for in-situ optical and electrical sensing measurements between gases and materials. It is equipped with a standard gas reaction chamber, featuring an interdigitated electrode (with a surface capable of attaching research materials) that allows for precise temperature control, reaching up to 400℃. The instrument is equipped with an ultra-weak light detection system and an electrochemical measurement system. At specific temperatures, it measures the optical signals (cataluminescence/thermoluminescence) from the reaction between gases and materials on the surface of the interdigitated electrode, as well as the electrical signals (R-t/i-t) from the interdigitated electrode. Additionally, it can be used in conjunction with the BPCL-GDS series gas dispensing system. The instrument finds applications in cataluminescence, thermoluminescence, cyclic luminescence, gas-sensitive photoelectric sensing, and thermoluminescence. Its application areas include drug analysis, food analysis, environmental monitoring, and materials science.
