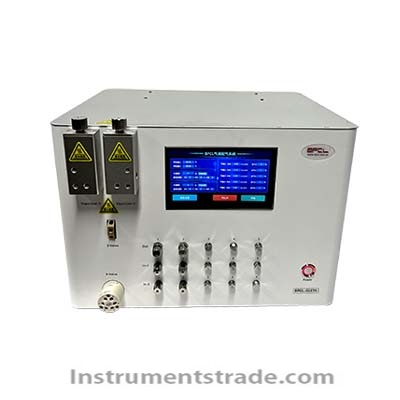

BPCL-GDS100/150 series gas distribution system Introduction: The BPCL-GDS100/150 series gas dispensing system is primarily used for gas generation and gas preparation. It consists of an air pump, flowmeter, three-way solenoid valve, six-way rotary valve, sample injector, and vaporization chamber. It can achieve gas generation, gas dilution, and multi-gas mixture preparation, and is compatible with various gas detection-related instruments. The application directions of the instrument include gas sensing, gas generator, gas dilution, multi-gas mixture preparation, and use with various gas-related instruments. Technical Specifications: 1. Carburetor (1) Quantity: two groups (2) Vaporization temperature: room temperature -150 ℃, programmable (3) Inlet pipeline: 3*2mm, made of PEEK material (4) Connector: 1/4-28UNF, made of PEEK material 2. Gas circuit (1) Quantity: 1-5 routes are optional (2) Gas source: Air or cylinder gas, selectable through software (3) Flow rate: A gas mass controller is employed, allowing for pressure reduction, and the flow rate of each gas channel can be precisely controlled through programming. (4) Gas pipeline: 3*2mm, made of PEEK material (5) Connector: 1/4-28UNF, made of PEEK material 3. Six-way rotary valve (1) Quantity: 1 set (2) Control: Two-position six-way valve, manually switchable or programmable gradient switching (4) Gas pipeline: 3*2mm, made of PEEK material (5) Connector: 1/4-28UNF, made of PEEK material (6) Sample injection: Quantitative loop interval injection or continuous injection 4. Three-way solenoid valve (1) Quantity: 1 set (2) Control: Two-position three-way, manually switchable (4) Gas pipeline: 3*2mm, made of PEEK material (5) Connector: 1/4-28UNF, made of PEEK material 5. Embedded system (1) Touch screen: 7.0 inches, resolution 1024*600 (2) Equipped with an embedded analysis system, it allows for the setting of vaporizer temperature, switching mode of six-way rotary valve, switching of three-way solenoid valve, and gas path selection
BPCL-GDS100/150 series gas distribution system Introduction: The BPCL-GDS100/150 series gas dispensing system is primarily used for gas generation and gas preparation. It consists of an air pump, flowmeter, three-way solenoid valve, six-way rotary valve, sample injector, and vaporization chamber. It can achieve gas generation, gas dilution, and multi-gas mixture preparation, and is compatible with various gas detection-related instruments. The application directions of the instrument include gas sensing, gas generator, gas dilution, multi-gas mixture preparation, and use with various gas-related instruments.
