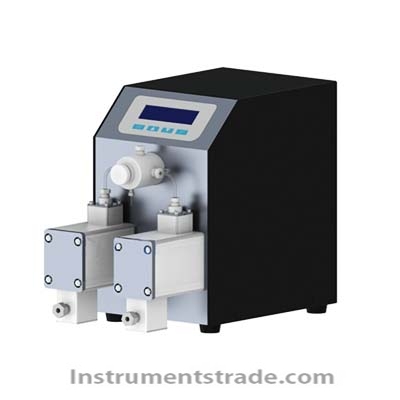

BM100 bladder metering pump Introduction: The BM100 bladder type metering pump is a corrosion-resistant, perfluorinated flow path, high-precision chemical metering pump designed for the transportation of high-purity electronic chemicals and highly corrosive and difficult chemical materials. The materials in contact with the medium of the bladder type metering pump are PFA and PTFE, and the flow path does not contain metal materials. At the same time, the design without a shaft seal can prevent liquid leakage and external gas from entering. Therefore, capsule metering pumps are often used for the transportation of demanding materials in the semiconductor, life science, and chemical fields, such as photoresist, hydrofluoric acid, phosphoric acid, hydrochloric acid, potassium hydroxide, liquid hydrogen fluoride, hydrobromic acid, phosphorus trichloride, liquid chlorine, bromine, chlorosulfonic acid, sulfuric anhydride, fuming sulfuric acid, fuming nitric acid, butyl lithium, Grignard reagent, concentrated sulfuric acid, concentrated phosphoric acid, etc. Features: The liquid receiving part of the flow path is only composed of fluororesin, which can transport various chemicals such as strong corrosive acids, alkalis, and salts 2. The liquid receiving part has no sealing ring and sliding structure, and does not produce micro particles during operation, with no risk of sealing ring leakage 3. No external gas enters, making it difficult to produce electrolyte crystallization structure 4 can transport high viscosity materials and trace gas materials 5 screw drive, capable of achieving high-precision continuous flow fluid transportation Product Usage Transportation of high viscosity, high concentration, and highly corrosive materials in the chemical industry Photoresist and high-purity electronic chemical transportation in semiconductor processes Electrolyte transportation in the manufacturing process of lithium-ion batteries and other batteries Clean material transportation in the field of biomedicine Quantitative transportation of other liquid chemicals or liquid materials Technical Specifications: Model: BM-100 Flow range: 1.0-1000ml/min Conveying viscosity range: 0-300cP Increment: 0.1ml/min Flow accuracy: ± 1% Pressure range: ≤ 0.5MPa Inlet pipe diameter: φ 6mm × φ 4mm Diameter of liquid outlet pipe: φ 3.175mm × φ 1.58mm Flow path materials: PTFE, PFA, special ceramics Communication functions: USB, RS232, RS485; Modbus protocol Power supply: 85-264VAC, 50Hz Power: 20W Weight: 8kg Dimensions: 362 × 169 × 278mm3
