Sales BL-EX400PI analog explosion-proof hemisphere camera，Manufacturer

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Video camera > BL-EX400PI analog explosion-proof hemisphere camera

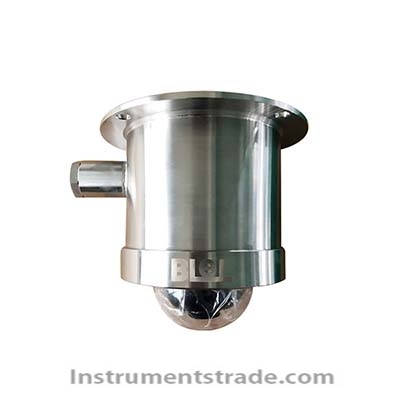

BL-EX400PI analog explosion-proof hemisphere camera

Product ID：CLQTsxj022

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBL-EX400PI

Brand NameZJBLRLKJ

Payment TermsTT，PAYPAL，Alibaba.com Pay

Brief introduction:
Equipment made Ⅱ class explosion-proof certification and highest temperature (T) certification, the highest applicable to have A and B Ⅱ Ⅱ, Ⅱ C environment, T1 ~ T6 group explosive inflammable gas with air to form explosive mixture of 0, 1 zone and 2 zone and explosive of combustible dust in mixture with air to form 20, 21, 22 explosive dangerous location in addition to coal mine methane gas other explosive gas and dust environment. Such as: refining, oil production, gas production, chemical, fireworks production, grain processing and storage, gas stations and other environments.
Product features:
, explosion-proof identification: Exd IIC T6 Gb/ExtD A21 IP66 T80 ℃
• protection level: IP68
• product standard: Q/006-2016
• stainless steel material design, double explosion proof certification
• wide voltage design supports customized ac and dc power supply modes
• Windows glass precision processing, with self-cleaning function, with the use of hydrofluoric acid environment
Main features:
• multi-megapixel line-by-line scanning CMOS is adopted to capture the moving image without sawtooth
• supports coaxial hd output, with clear and fine images and resolution up to 720p
• supports coaxial hd output and standard definition CVBS analog output (multiplexed 1-channel BNC interface), which can be switched between control lines (default HDTVI output)
• low illumination, 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
• support ICR infrared filter type automatic switching, automatic color black function, to achieve day and night monitoring
• support intelligent SMART IR function to effectively prevent short-range infrared overexposure
• use matrix speckle lens to match the sensor area and greatly improve the utilization rate of light energy
• comply with IP66 waterproof design, high reliability
Technical parameters:

Model	Model	BL-EX400PI
Model	Name	700TVL CCD super wide dynamic ICR day and night hemispherical camera
Camera	Sensor type	SONY Super HAD CCD II
	Effective pixels	976(horizontal) * 582(vertical)
	Signal system	PAL
	Minimum illumination	Color :0.001Lux @(F1.2,AGC ON),0.0001Lux@ (F1.2, AGC ON, sensitivity * 512)
		Black and white :0.0001Lux @(F1.2,AGC ON),0.00001Lux @(F1.2,AGC ON, sensitivity * 512)
		Color :0.0014Lux @(F1.4,AGC ON),0.00014Lux@ (F1.4,AGC ON, sensitivity * 512)
		Black and white :0.00014Lux @(F1.4,AGC ON), 0.000014Lux @(F1.4,AGC ON, sensitivity * 512)
	Shutter	1/50s to 1/100,000s
	Lens	2.8~12mm@ F1.4
	Lens interface type	Φ14
	Automatic aperture	DC drive
	Adjust angle	Level: 0 ° ~ 340 °;Vertical: 0 ° ~ 75 °.Rotation: 0 ° ~ 355 °
	Day night conversion mode	ICR infrared filter type
	Horizontal resolution	700TVL
	Wide dynamic range	More than 75 db
	synchronously	Internal synchronization/power synchronization
	Video output	1Vp-p Composite Output(75Ω/BNC)
	Video output	Test Monitor OUT[1Vp-p Composite Output(75Ω/BNC), Device line
	Signal to noise ratio	More than 62 db
Menu control	Camera identification number	Off/on (52 characters, position setting)
	Automatic gain	Automatic/manual/fixed
	Color/black and white	Automatic/color/black and white
	White balance	Automatic white balance/single press/user 1/ user 2 / manual/single press lock
	Privacy protection	Switch, up to 15 areas
	Motion detecting	On/off
	Backlight compensation	High brightness compensation/backlight compensation/off
	RS-485	Protocol/address/baud rate/data bit/parity bit/stop bit
	Flashing	Automatic/on/off
	language	Chinese/English/Japanese/German/French/Russian /Portuguese/Spanish
	Feature set	Infrared optimization, digital noise reduction, brightness, contrast, sharpness, tone, color gain, digital anti-shake, digital amplification, flip, white point compensation, fog removal
	System Settings	Sync mode/lens/flip /LCD/CRT/ communication/camera identifier
	scenario	Automatic/indoor/outdoor/indoor backlight/intelligent traffic/custom
General specification	Working temperature and humidity	- 10 ℃ ~ 60 ℃, humidity is less than 90% (without condensate)
	Power supply	AC24V±10% / DC12V±10%
	coaxial visual control	Yes
	Power consumption	4W MAX(4.5w MAX when ICR is switched)
	Communication	Coaxial visual control (with controller required)
	Communication	Protocol: Pelco - C (Coaxitron)
	Weight	4kg

Brief introduction:
Equipment made Ⅱ class explosion-proof certification and highest temperature (T) certification, the highest applicable to have A and B Ⅱ Ⅱ, Ⅱ C environment, T1 ~ T6 group explosive inflammable gas with air to form explosive mixture of 0, 1 zone and 2 zone and explosive of combustible dust in mixture with air to form 20, 21, 22 explosive dangerous location in addition to coal mine methane gas other explosive gas and dust environment. Such as: refining, oil production, gas production, chemical, fireworks production, grain processing and storage, gas stations and other environments.
