BIX-8813 Absorbance Measurement System

Product ID：GSYqt035

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBIX-8813

Brand NameHZBOYUAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

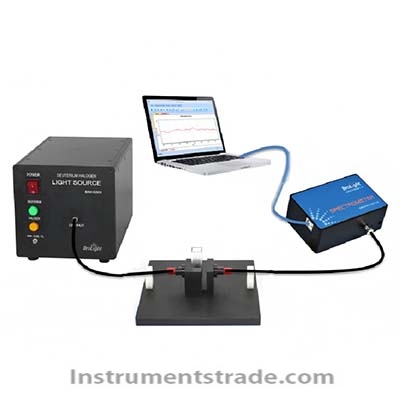

BIX-8813 Absorbance Measurement System
Introduction:
When a beam of light passes through a substance (usually a solution), the substance absorbs some of the light energy, and the degree of light absorption can be measured using absorbance. Absorbance measurement is widely used in liquid and gas spectral measurement techniques in scientific research projects, as well as in industrial scenarios for the concentration testing of specific substances. The relationship between solution absorbance and concentration is known as the Beer-Lambert Law. By testing several sets of solution samples with known molar concentrations using a spectrometer, a matching curve between solution absorbance and concentration can be calculated, which can then be used to measure the concentration of other samples.
Compared to traditional experimental methods for determining absorbance, spectrometer testing is simple and efficient, with precise and reliable experimental results. This frees researchers from complex experimental operations and reduces human errors. Based on a modular design, the spectrometer can adapt its equipment configuration according to changing experimental needs, expanding its applications. Scope of application: research on absorbance measurement of substances; quantitative measurement of substance concentration; measurement and analysis of substance absorption characteristics.
Features:
1. Sample testing is convenient, and the data is intuitive and reliable
2. Sampling measurement or immersion measurement can be selected according to the scene
3. Easy to operate, good reproducibility, and rapid detection
4. Convenient for reading the absorbance and curve of the full spectrum
Technical Specifications:

project	Specifications
model	BIX-8813-0X1X (Selection description: 0X- Spectrometer option, 1X- Sampling component option)
spectrometer	01：200nm~1100nm（BIM-6002S-22-S03L02F06G13）
	02：200nm~900nm（BIM-6002A-01-S03L02F06G01）
	03：400nm~1100nm（BIM-6002A-13-S03L01F05G02）
Sampling component	11： 2 pieces of 1 to 1 fiber optic cable (SIM-6102-1010-S/S-P) Cuvette holder (BIM-6305-01) *1 set One quartz cuvette (SIM-6301-Q10)
Sampling component	12： One piece of submerged fiber (SIM-6122-0615) One submerged reflective head (SIM-6122-H10)
light source	One deuterium tungsten lamp light source (BIM-6203)
