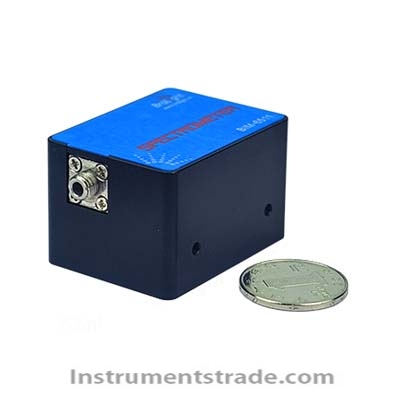

BIM-6511 series mini spectrometer

Product ID：FGgs017

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberBIM-6511

Brand NameHZBOYUAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

BIM-6511 series mini spectrometer
Introduction:
The BIM-6511 series of miniature spectrometers utilizes a novel flat-field concave grating design for its optical and mechanical construction, resulting in a compact size comparable to a coin, making it highly suitable for industrial integration and pocket-sized portable applications. The product offers a standard model, BIM-6511, that can be directly used and integrated, as well as a model without the main control circuit board, BIM-6511-NC, allowing customers to independently develop the main control circuit based on the detector. The BIM-6511 series of miniature spectrometers are an excellent choice for portable water quality testing equipment in the environmental protection testing industry, as well as handheld light color measurement devices in the lighting industry.
Application scope:
Integrated probe-type water quality measuring instrument
Handheld lighting instrument integration
Integrated handheld material testing instrument
Handheld component detection instrument integration
Portable spectral measurement
Features:
1. The size of a matchbox, making it extremely easy to carry and integrate
2. Supports USB power supply and communication, easy to use
3. Supports multiple triggering methods, with powerful software functionality
4. Provide SDK and support secondary development
5. Provide two versions to choose from: one with a main control circuit and one without
Technical Specifications:

model	BIM-6511	BIM-6511-NC
wavelength range	200nm-750nm	200nm-750nm
optical resolution	~6nm	~6nm
Slot size	25um	25um
fiber optic connector	SMA905	SMA905
detector	Hamamatsu S8378-256, CMOS	Hamamatsu S8378-256, CMOS
Detector pixel	256 pixels	256 pixels
signal-to-noise ratio	400:1	It depends on the customer's main control board
A/D resolution	16 bit
integration time	5ms -60s
dynamic range	1000:1
Trigger method	Normal mode, software trigger, hardware trigger, synchronous trigger
power consumption	250mA,5VDC
Ambient temperature (recommended temperature)	5℃-35℃ (recommended temperature: 25℃)
communication interface	USB2.0 (12Mbps) RS232 (115200bps)
operating system	Win XP,Win7,Win8,Win10
power supply method	USB
size	50 ×28 ×30 mm	43 ×25 ×13.8 mm
weight	100 g	30 g
