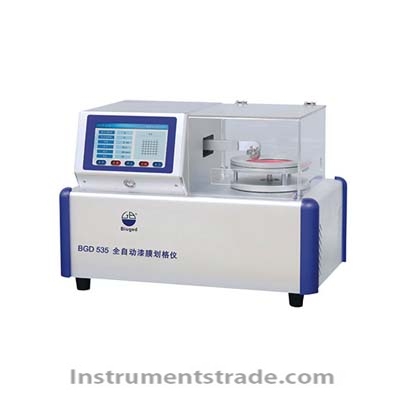

BGD 535 fully automatic paint film marking instrument Introduction: The grid method, as an important method for evaluating the degree of adhesion between coatings and substrates, has been widely used. Although the traditional manual grid cutting method is simple and convenient, the operator's cutting speed and cutting force on the coating cannot be precisely controlled, resulting in certain differences in the test results of different testers. The latest ISO 2409-2019 standard specifies that in order to achieve uniform and consistent cutting, it is recommended to use motor-driven automatic grid cutters as much as possible. characteristic: 1. Adopting a 7-inch industrial grade full touch screen, relevant cutting parameters can be edited, and the parameter display is clear and intuitive; 2. The cutting speed, cutting spacing, and number of cuts (grids) can be set; 3. Automatically compensate for the load force during the cutting process, ensuring a constant load and consistent cutting depth for the coating; 4. Automatic clamping test template, simple and convenient; 5. After completing a certain cutting direction, the work platform automatically rotates precisely 90 ° to avoid the cutting line not being completely perpendicular to each other caused by manual rotation. 6. Special test blade (with a diameter of 1mm) can be optionally selected to complete the scratch resistance test of plastic parts for automotive interiors that meet the GME 60280 standard Technical parameters: Test panel size: 150mm × 100mm × (0.5-20) mm Cutting tool pressure setting range: 2N~50N Cutting speed setting range: 1mm/s to 40mm/s Minimum cutting distance: 0.5mm Maximum cutting spacing: 40mm/(number of lines -1) Angle setting range: 25 °~90 ° Power supply: 220V, 50/60Hz Maximum power: 80W Instrument dimensions: 540mm x 335mm x 380mm (length x width x height) Net weight of the instrument: 27KG
Introduction: The grid method, as an important method for evaluating the degree of adhesion between coatings and substrates, has been widely used. Although the traditional manual grid cutting method is simple and convenient, the operator's cutting speed and cutting force on the coating cannot be precisely controlled, resulting in certain differences in the test results of different testers. The latest ISO 2409-2019 standard specifies that in order to achieve uniform and consistent cutting, it is recommended to use motor-driven automatic grid cutters as much as possible.
