BF-08 Fuel Gum Content Tester for Aviation fuel testing

Product ID:HZSYwltx006

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBF-08
    Brand NameDALIANBEIFANG
    Payment TermsT/T, paypal

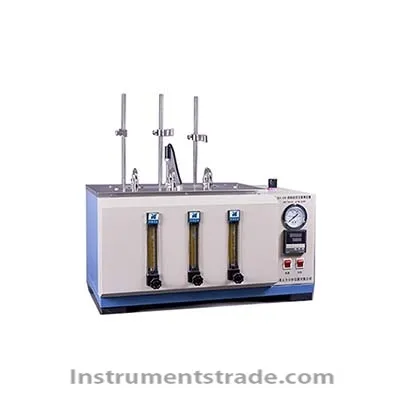

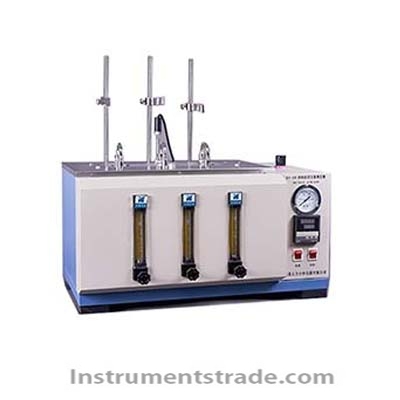

    BF-08 Fuel Gum Content Tester

    Introduction:
    The BF-08 fuel colloid content tester is designed and manufactured in accordance with the GB/T 8019-2008 standard. It can accurately describe the actual colloid of aviation fuel, motor gasoline and other volatile fractions (including alcohols, Ether oxygen-containing compounds and sediment inhibitor products) in the test of the determination of the colloidal content. BF-08 Fuel Gum Content Analyzer has beautiful and generous appearance design, reasonable structure design, convenient operation and accurate result determination.
    The BF-08 fuel colloid content tester uses a digital intelligent temperature control meter to control the temperature of the metal evaporation bath, with high temperature control accuracy.
    The main body of the evaporation bath of BF-08 fuel colloid content tester is made of aluminum. There is a spiral air path in the aluminum bath. Air (the air compressor is connected to the air inlet of the compressed air purifier through a connecting pipe, and then comes out from the compressed air purifier. The air port is connected to the air inlet of the aluminum bath through a connecting pipe.) The air inlet enters the air outlet through the spiral pipe and sprays into the beaker for testing; there are two holes above the aluminum bath, the front hole is inserted into the thermometer, the rear hole is inserted into the sensor ; The air inlet is under the aluminum bath, equipped with a pressure gauge and a flow meter, which can be adjusted after ventilation (the flow rate at room temperature is 600ml/s ±0 90 ml/s); there is a convenient thermometer fixture above the aluminum bath, It can move up and down and rotate 360 ​​degrees, which can easily detect the temperature of each bath hole.
    Technical Parameters:
    1. Power supply: AC 220V±10%/50 HZ
    2. Heating power of evaporation bath: 2000W
    3. Number of test holes: three holes
    4. Outlet flow rate: 1000±150 ml/sec
  • Introduction:
    The BF-08 fuel colloid content tester is designed and manufactured in accordance with the GB/T 8019-2008 standard. It can accurately describe the actual colloid of aviation fuel, motor gasoline and other volatile fractions (including alcohols, Ether oxygen-containing compounds and sediment inhibitor products) in the test of the determination of the colloidal content. BF-08 Fuel Gum Content Analyzer has beautiful and generous appearance design, reasonable structure design, convenient operation and accurate result determination.
