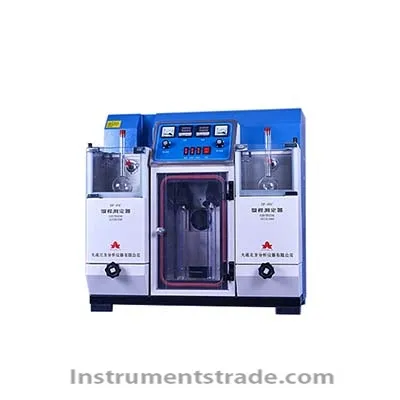

BF-05C Distillation Range Tester for Petroleum products

Product ID:HZSYzly0044

Price: Please inquire PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberBF-05C
    Brand NameDALIANBEIFANG
    Payment TermsT/T, paypal
    BF-05C Distillation Range Tester

    Overview
    This instrument is designed and manufactured in accordance with the national standard GB/T6536, the international standard ISO3405 and ASTM D86. It is suitable for the distillation determination of petroleum products such as gasoline, jet fuel, petroleum solvent, kerosene and diesel under this standard.
    This instrument is mainly composed of three parts: distillation device, condensing device and receiving system.
    1. The distillation device is composed of a heating rate control system and a heating furnace lifting mechanism.
    The main component of the heating rate adjustment circuit is a solid-state voltage regulator, which is simple to install, easy to use, and reliable in performance.
    The output voltage is directly displayed by the voltmeter, which is intuitive and easy to control.
    The heating furnace adopts a quartz tube electric furnace, which has the advantages of anti-oil splash, anti-electric shock, anti-oxidation and high thermal efficiency compared with the traditional one.
    2. Condensing devices include compressor refrigeration systems, baths, etc.
    3. The receiving system is composed of receiving measuring cylinder, receiving bath and so on.
    Technical Parameters:
    1. Power supply: AC220V 50Hz
    2. Distillation heating power: 01200W continuously adjustable (2 groups)
    3. Adjustable amount of heating furnace lifting: 35mm
    4. Aperture of flask support plate: ф50mm, ф38mm two kinds
    5. The temperature adjustment range of the condensing bath: -580
    Receiving bath temperature adjustment range: 0room temperature
  • Overview
    This instrument is designed and manufactured in accordance with the national standard GB/T6536, the international standard ISO3405 and ASTM D86. It is suitable for the distillation determination of petroleum products such as gasoline, jet fuel, petroleum solvent, kerosene and diesel under this standard.
    This instrument is mainly composed of three parts: distillation device, condensing device and receiving system.
    1. The distillation device is composed of a heating rate control system and a heating furnace lifting mechanism.
    The main component of the heating rate adjustment circuit is a solid-state voltage regulator, which is simple to install, easy to use, and reliable in performance.
    The output voltage is directly displayed by the voltmeter, which is intuitive and easy to control.
    The heating furnace adopts a quartz tube electric furnace, which has the advantages of anti-oil splash, anti-electric shock, anti-oxidation and high thermal efficiency compared with the traditional one.
    2. Condensing devices include compressor refrigeration systems, baths, etc.
    3. The receiving system is composed of receiving measuring cylinder, receiving bath and so on.
