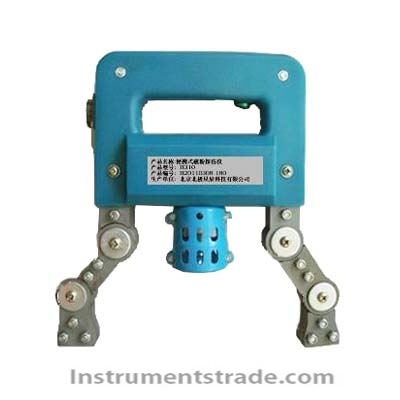

B320 Magnetic Particle Flaw Detector Introduction: The B320 electromagnetic yoke flaw detector is a small and portable specialized instrument for non-destructive testing, which adds a light source to the B310 for easy observation of defects. It is a small instrument designed based on the principle of magnetic field magnetization of workpieces, which has the characteristics of clear crack display of the tested workpiece, reliable and stable performance, and easy operation. The magnetic particle flaw detector uses a coil directly wound around the probe to generate an induced magnetic field to magnetize the workpiece. The device has small size, light weight, high lifting force, and adjustable movable joints. Suitable for non-destructive testing of flat welds, fillet welds, steel pipes, pressure vessels, pipelines, shafts, and complex shaped parts. Main structural features: The accessory power cable is a three core cable, with one end inserted into the probe through a circular three core aviation plug, and the other end connected to a 220V socket on the distribution board through a single-phase three core plug. The matching probe is made of high-strength insulation material, and after passing the inspection, it is connected together with epoxy resin adhesive to achieve both sealing and insulation, and is not easily damaged. The operation is also comfortable. The probe has movable joints, which can be used by users on specific workpieces or flat magnetic yokes. The specific shape of the probe to be used depends on the shape of the magnetized workpiece. Technical parameters: Input voltage:~220V ± 10%, 50-60HZ; Working current: AC2A; Probe pole distance: 20-160mm; Lift capacity: (flat) 8Kg; Instrument weight: 2Kg; Sensitivity: Type A test piece displays clearly
Introduction: The B320 electromagnetic yoke flaw detector is a small and portable specialized instrument for non-destructive testing, which adds a light source to the B310 for easy observation of defects. It is a small instrument designed based on the principle of magnetic field magnetization of workpieces, which has the characteristics of clear crack display of the tested workpiece, reliable and stable performance, and easy operation. The magnetic particle flaw detector uses a coil directly wound around the probe to generate an induced magnetic field to magnetize the workpiece. The device has small size, light weight, high lifting force, and adjustable movable joints. Suitable for non-destructive testing of flat welds, fillet welds, steel pipes, pressure vessels, pipelines, shafts, and complex shaped parts.
