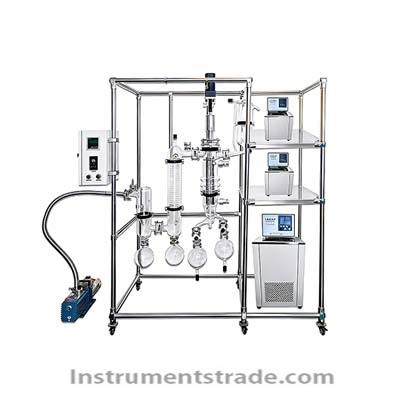

AYAN-F60 Molecular Distillation Apparatus Introduction: Short-path molecular distillation is a special liquid-liquid separation technology. Under high vacuum conditions, the average free path of vapor molecules is greater than the distance between the evaporation surface and the condensation surface, allowing for the separation of liquid mixtures by utilizing the differences in evaporation rates of various components in the feed liquid. This product is the preferred alternative to short-path distillation equipment: it has shorter residence time, lower processing temperature, and can operate continuously without damaging the vacuum environment. It can be used as a plug-and-play turnkey design solution for the industry. Application fields: Fine chemical industry, such as the purification of aromatic oils, the purification of polymer intermediates, the extraction of wool fat, and so on In the pharmaceutical field, such as extracting natural vitamin AE, preparing derivatives of amino acids and glucose, etc Food industry: such as refined fish oil, deacidification of oils and fats, refined higher alcohols, separation of mixed oils and fats, etc Other fields: petroleum industry, household chemicals, environmental protection, etc Features: Operating at a temperature far below the boiling point of the material, with short material residence time; conducive to the separation of high boiling point, heat-sensitive, and easily oxidizable materials 2. Effectively removing substances such as organic solvents and odors from liquids is a very effective method for desolventizing liquids after solvent extraction 3. It is possible to selectively distill the volatile products and remove other impurities. Through multistage separation, more than two substances can be simultaneously separated 4. The distillation has a high vacuum degree. Under no-load conditions, the vacuum degree can reach below 10a, and a very high vacuum degree can be achieved inside. Generally, molecular distillation is carried out under very low pressure By carrying out certain operations, the material is less prone to oxidation and damage 5. The distillation liquid film is thin, with high heat transfer efficiency, and the film thickness is less than 0.5mm 6. With a higher degree of separation, molecular distillation can separate substances that are conventionally difficult to separate 7. Without boiling and bubbling phenomena, molecular distillation is a free evaporation on the surface of the liquid layer, carried out under low pressure, and there is no dissolved air in the liquid, therefore During the distillation process, the entire liquid must not boil, and there should be no bubbling phenomenon. 8. Multiple specifications are available for customers to choose from, suitable for small-scale and pilot-scale experiments. If a larger evaporation area is required, it can be customized according to customer requirements. 9. Physical separation method, non-toxic, harmless, non-polluting, and non-residual, can obtain pure and safe products 10. The scraper system is made of PTFE material and 304 stainless steel, which has extremely high corrosion resistance; 11. The feeding tank can be equipped with a preheating function, and the preheating temperature can be adjusted. 12. Each interface is sealed with fluorine rubber gaskets, ensuring good airtightness. If customers require corrosion resistance, they can be replaced with PTFE (polytetrafluoroethylene) materials Technical Specifications: Product model: AYAN-F60 Inner diameter (mm): 60 Evaporation area (㎡): 0.06 Condensation area (㎡): 0.1 Feeding volume (L): 1 (customizable) Processing flow rate (L/H): 0.1 to 2.0 Motor power (W): 120 Maximum speed (r/min): 450 Light fraction collection bottle (L): 1 (customizable) Reconstituted collection bottle (L): 1 (customizable) Cold trap: Yes External condensation unit: optional Cooling device: Yes Vacuum degree (Pa): below 10 Heating temperature (℃): Room temperature - 200
