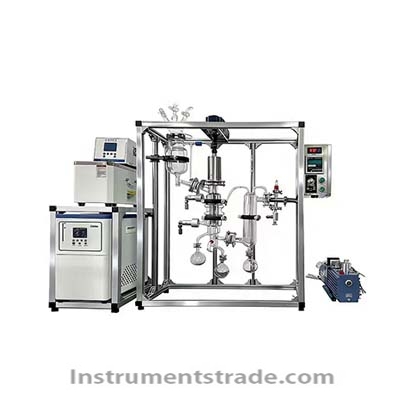

AYAN-F20 Molecular Distillation Apparatus Introduction: Short-path molecular distillation is a special liquid-liquid separation technology. Under high vacuum conditions, it ensures that the mean free path of vapor molecules is greater than the distance between the evaporation surface and the condensation surface, thereby allowing for the separation of liquid mixtures by utilizing the differences in evaporation rates of various components in the feed liquid. This product is the preferred alternative for short-path distillation equipment: it has shorter residence time, lower processing temperature, and can operate continuously without damaging the vacuum environment. It can be used as a plug-and-play turnkey design solution for the industry. Application fields: Fine chemical industry, such as the purification of aromatic oils, the purification of polymer intermediates, the extraction of wool fat, and so on In the pharmaceutical field: such as extracting natural vitamin AE, preparing derivatives of amino acids and glucose, and so on Food industry: such as refined fish oil, deacidification of oils and fats, refined higher alcohols, separation of mixed oils and fats, etc Other fields: petroleum industry, household chemicals, environmental protection, etc Features: Operating at a temperature far below the boiling point of the material, with a short material residence time; conducive to the separation of high boiling point, heat-sensitive, and easily oxidizable materials 2. Effectively removing substances such as organic solvents and odors from liquids is a very effective method for desolventizing liquids after solvent extraction 3. It is possible to selectively evaporate the products and remove other impurities. Through multistage separation, more than two substances can be separated simultaneously 4. The distillation has a high vacuum degree. Under no-load conditions, the vacuum degree can reach below 10a, and a very high vacuum degree can be achieved inside. Generally, molecular distillation is carried out under very low pressure Perform the operation so that the material is not easily oxidized and damaged 5. The distillation liquid film is thin, with high heat transfer efficiency, and the film thickness is less than 0.5mm 6. With a higher degree of separation, molecular distillation can separate substances that are conventionally difficult to separate 7. Without boiling and bubbling phenomena, molecular distillation is a process of free evaporation on the surface of the liquid layer, conducted under low pressure. There is no dissolved air in the liquid, hence During the distillation process, the entire liquid should not be allowed to boil, and there should be no bubbling phenomenon. 8. We offer a variety of specifications for customers to choose from, suitable for small-scale and pilot-scale experiments. If larger evaporation area specifications are required, they can be customized according to customer requirements. 9. Physical separation method, non-toxic, harmless, non-polluting, and non-residual, can obtain pure and safe products 10. The scraper system is made of PTFE material and 304 stainless steel, which has extremely high corrosion resistance; 11. The feeding tank can be optionally equipped with a preheating function, and the preheating temperature can be adjusted. 12. Each interface is sealed with fluorine rubber gaskets, ensuring good air tightness. If customers require corrosion resistance, they can be replaced with PTFE (polytetrafluoroethylene) materials Technical Specifications: Product model: AYAN-F20 Inner diameter (mm): 20MM Evaporation area (㎡): 0.01 Condensation area (㎡): 0.01 Feeding capacity (L): 250ML Processing flow rate (L/H): 0.1 to 0.2 Motor power (W): 60 Maximum speed (r/min): 500 Light fraction collection bottle (L): 50ML Reconstituted collection bottle (L): 50ML External condensation device: Yes Cooling device: Yes Heating device: Yes Vacuum degree (Pa): 10Pa (up to 1Pa with a diffusion pump) Heating temperature (℃): Room temperature - 300
Overall dimensions: Main body with slot dimensions: Length 1500 mm * Depth 500mm * Height 1300mm
The main body without the slot part measures 1100mm in length, 500mm in depth, and 1300mm in height
