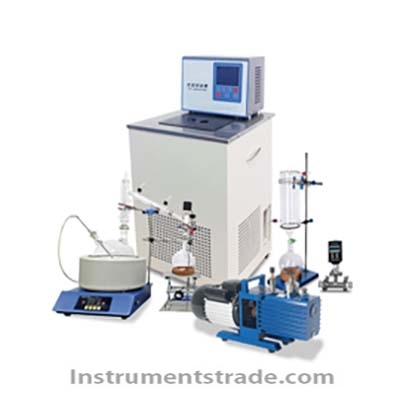

AY-SP2L Short-Path Molecular Distillation Kit

Product ID：SYCHZL054

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAY-SP2L

Brand NameHZANYAN

Payment TermsTT，PAYPAL，Alibaba.com Pay

AY-SP2L Short-Path Molecular Distillation Kit
Introduction:
Short-path molecular distillation is a distillation technology that operates over a short distance. It is a method based on the difference in boiling points in a liquid mixture under negative pressure to separate the mixture. When the sample mixture to be purified is heated, the vapor rises and enters a vertical condenser, where it is cooled by water. This technology is used for compounds that are unstable at high temperatures because it can ensure a lower boiling point.
Its advantage is that the heating temperature can be much lower than the boiling point of the liquid under standard pressure (under negative pressure), and the distillate travels only a short distance before condensation. At the same time, the amount of residual compounds after short-path distillation is relatively small.
Features:

Tetrafluoro-spiro thermometer connector (with fluororubber gasket)
Downward feed port
Vacuum jacket steam channel

4. Multiple sets of shunt bottle distillation heads
5. High-quality and durable 3.3 borosilicate glass
6. Heating jacket with magnetic stirring function
7.Cold trap protects the vacuum pump from steam contamination and damage 8. Equipped with vacuum pump and heating & cooling equipment
Technical Specifications:

model		AY-SP2L	AY-SP5L	AY-SP10L	AY-SP20L
material		Borosilicate glass 3.3
heating temperature		300℃
work pressure		About 5 Pa
Distillation flask	Volume (L)	2	5	10	20
Distillation flask	interface	2 x 24/40 connectors	34/45 connector, 24/40 connector	24/40 connector, 2 x 34/45 connectors	24/40 interface, 2 x 34/45 interfaces
receiving flask	Volume (mL)	2 x 500mL	2 x 1000mL	2 x 2000mL	4 x 2000mL
receiving flask	interface	24/40 connector	24/40 connector	24/40 connector	24/40 connector
cold trap	Dry ice volume (L)	1L	1L	1L	2 x 1L
heating mantle	Heating power (w)	650	1100	2100	3000
	Stirring speed (rpm)	50-1800	50-1800	50-1800	50-1800
	Motor power (w)	40	40	40	40
vacuum pump	Pumping rate (CFM)	10	10	10	15
Low-temperature circulating tank	cooling temperature	-10℃~ 95℃	-10℃~ 95℃	-10℃ ~ 95℃	-10℃ ~ 95℃
universal	voltage	220V 50/60Hz
