AVHP-003 Hydrogen Peroxide Vaporized Air Disinfection Machine
Product Introduction

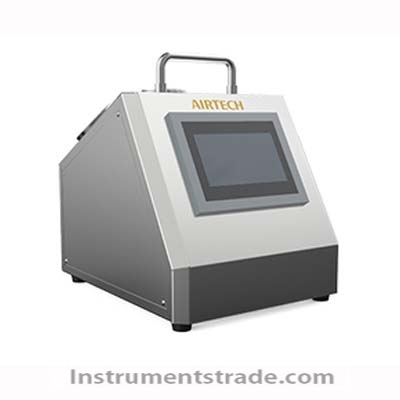

The AVHP-003 Hydrogen Peroxide Vaporized Air Disinfection Machine is a compact and portable hydrogen peroxide vapor disinfection system designed primarily for the decontamination of biosafety cabinets and other small enclosed spaces. Weighing only 5 kg, it is easy to transport and deploy.
The AVHP-003 uses hydrogen peroxide atomization technology to rapidly distribute the disinfectant throughout the enclosed space. A complete disinfection process can be completed in approximately 3 hours, with a specified disinfection performance of Log4–Log6. After treatment, residual gas can be safely discharged and decomposed without persistent pollution, providing an efficient and environmentally friendly solution for laboratory decontamination.

Key Features
• Compact and portable: Weighs only 5 kg for convenient transportation and deployment.
• Rapid disinfection: Complete disinfection cycle in approximately 3 hours.
•Biosafety cabinet solution: Specifically designed to support the decontamination of compatible biological safety cabinets.
• High disinfection performance: Disinfection effectiveness reaches Log4–Log6 under applicable conditions.
• Low residual pollution: Residual hydrogen peroxide can be decomposed after disinfection for safer discharge.
• Low energy consumption: Rated power is only 20 W, helping reduce operating costs.
• Small-space application: Suitable for enclosed spaces of up to 3 m³.
• Easy operation: Quick preparation and convenient deployment.
• Low maintenance footprint: Compact dimensions of only 200 × 250 × 250 mm.

Working Principle
The AVHP-003 generates fine hydrogen peroxide droplets through an atomization process and distributes the disinfectant within the sealed treatment space.
The hydrogen peroxide-based disinfectant reaches internal surfaces and hard-to-reach areas inside the enclosed space. Through the resulting oxidative action, microorganisms are inactivated to achieve effective decontamination. After the required exposure period, the residual hydrogen peroxide is decomposed and removed before the treated space is returned to normal use.
For biosafety cabinet applications, the cabinet should be properly sealed and operated according to the manufacturer's validated decontamination procedure and applicable safety requirements.

Technical Parameters

Parameter	Specification
Model	AVHP-003
Atomization Capacity	~40 g / 30 min
Noise Level	≤60 dB(A)
Applicable Disinfection Volume	≤3 m³ enclosed space
Recommended Application	Compatible SUGIJUN ANTAI biosafety cabinets
Power Supply	AC 220 V, 1Φ, 50 Hz
Operating Power Supply	DC 24 V, 2 A
Sterilization Performance	White Staphylococcus killing rate ≥99.9%
Rated Power	20 W
Dimensions (W × D × H)	200 × 250 × 250 mm
Maximum Liquid Capacity	160 mL
Weight	Approx. 5 kg
Typical Disinfection Time	Approx. 3 h
Disinfection Performance	Log4–Log6

Applications
The AVHP-003 Hydrogen Peroxide Vaporized Air Disinfection Machine is primarily intended for controlled decontamination of small enclosed spaces, including:
• Biosafety cabinets: Decontamination of compatible biological safety cabinets before maintenance or other required procedures.
• Laboratories: Controlled disinfection of suitable enclosed laboratory spaces.
• Biological research facilities: Support for microbial decontamination procedures.
• Small enclosed equipment areas: Applications where hydrogen peroxide-based vapor/atomized disinfection is validated and appropriate.
•Life science and biotechnology facilities: Routine or periodic decontamination of compatible enclosed work areas.

AVHP-003 vs. Conventional Disinfection Methods

Feature	AVHP-003 Hydrogen Peroxide Disinfection Machine	Conventional Manual Disinfection
Disinfection Method	Hydrogen peroxide atomization	Manual wiping or spraying
Space Coverage	Enclosed-space treatment	Primarily accessible surfaces
Hard-to-Reach Areas	Suitable for validated enclosed-space treatment	More difficult to reach
Disinfection Performance	Log4–Log6	Depends on disinfectant and procedure
Portability	Approx. 5 kg	Equipment dependent
Typical Process Time	Approx. 3 h	Varies considerably
Energy Consumption	Rated power 20 W	Depends on equipment
Application Focus	Biosafety cabinets and small enclosed spaces	General surface disinfection
Residual Treatment	Residual gas can be decomposed before discharge	Depends on disinfectant

FAQ
1. What is the AVHP-003 used for?
The AVHP-003 is a hydrogen peroxide vaporized air disinfection machine mainly designed for decontaminating compatible biosafety cabinets and other small enclosed spaces.
2. How large an enclosed space can the AVHP-003 disinfect?
It is designed for enclosed spaces of no more than 3 m³, particularly compatible SUGIJUN ANTAI biosafety cabinets.
3. How long does a typical disinfection process take?
The complete disinfection process is approximately 3 hours, depending on the validated application and operating procedure.
4. What level of disinfection can the AVHP-003 achieve?
The product is specified with a disinfection performance of approximately Log4–Log6 under applicable conditions.
5. Is the AVHP-003 portable?
Yes. The unit weighs only about 5 kg and has compact dimensions of 200 × 250 × 250 mm, making it easy to transport.
6. How much hydrogen peroxide solution can it hold?
The maximum liquid filling capacity is 160 mL, while the atomization capacity is approximately 40 g per 30 minutes.
7. What happens to residual hydrogen peroxide after disinfection?
After the required treatment, residual hydrogen peroxide can be decomposed and removed before safe discharge, helping minimize residual pollution.
8. Is the AVHP-003 suitable for all biosafety cabinets?
It should be used with compatible and validated biosafety cabinet models and procedures. The specified application is for SUGIJUN ANTAI biological safety cabinets with enclosed spaces up to 3 m³.
