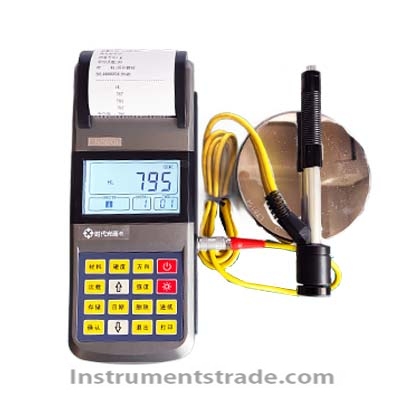

ATS120 Leeb Hardness Tester Introduction: The ATS120 Leeb hardness tester is a novel portable hardness testing instrument primarily designed for assessing the hardness of metallic materials. It boasts high testing accuracy, compact size, easy operation, convenient portability, and a wide measurement range. The Leeb hardness tester is designed based on the Leeb (Dietmar Leeb) hardness testing principle. The measured Leeb hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore, and other hardness values through a program. It can also be equipped with various testing accessories to meet various testing conditions and environments. It is mainly suitable for rapid hardness testing of metal materials, especially for on-site hardness testing of large components and non-dismountable parts. Features: 1. Capable of testing six hardness scales (HV, HRC, HRB, HB, HV, HS) 2. One machine can be equipped with multiple types of impact devices (D, DC, D+15, C, DL, G) simultaneously 3. Automatically identify the type of impact device (D, DC, D+15, C, DL, G) 4. Randomly print data and statistical histograms on-site, and can be connected to a PC for archiving, management, and analysis of measurement data 5. It is possible to set the material through the menu, and the impact direction can be automatically identified without any further settings 6. It can be set to automatically sound an alarm for upper and lower deviations of the hardness value 7. The screen features backlighting and adjustable contrast 8. Capable of storing 240 to 1000 sets of test data 9. Added test material (stainless steel) and expanded the scope of testing 10. Automatically detect battery voltage, and trigger an alarm when the operating voltage falls below the rated value 11. Display battery level 12. Test results can be printed Technical Specifications: Hardness scales: Leeb, Brinell, Rockwell B, Rockwell C, Vickers, Shore Measuring range: HLD (170~960) HLD Measurement direction: 360° Relative error ±0.8%, indication repeatability error 0.8 (HLD=800) (indication error and repeatability table) Standard impact device: D-type impact device (test range table) Measure the radius of curvature of the workpiece: Rmin=50mm (with a special-shaped support ring, Rmin=10mm) The maximum hardness value of the measured workpiece is 940HV (D/DC/DL/D+15/C impact device) Optional impact devices: D/C/DC/D+15/DL/G Automatic voltage detection: When the operating voltage falls below the rated value, an automatic alarm is triggered Display: 128×64 graphic dot matrix LCD Data storage: 500 sets Upper and lower limit setting range: same as measurement range Printer type: thermal printer, paper width: 57.5±0.5mm, diameter: 30mm Operating voltage: 6V nickel-hydrogen battery pack Charging time: 2.5~4h Charging power supply: 9V/500mA; charging time: 2.5 to 3.5 hours Continuous working time: approximately 150 hours (without printing and backlighting) Communication interface standard: USB 1.1 Overall dimensions: 212mm×80mm×32mm Weight: approximately 0.50kg (main unit)
ATS120 Leeb Hardness Tester Introduction: The ATS120 Leeb hardness tester is a novel portable hardness testing instrument primarily designed for assessing the hardness of metallic materials. It boasts high testing accuracy, compact size, easy operation, convenient portability, and a wide measurement range. The Leeb hardness tester is designed based on the Leeb (Dietmar Leeb) hardness testing principle. The measured Leeb hardness value is automatically converted into Brinell, Rockwell, Vickers, Shore, and other hardness values through a program. It can also be equipped with various testing accessories to meet various testing conditions and environments. It is mainly suitable for rapid hardness testing of metal materials, especially for on-site hardness testing of large components and non-dismountable parts.
