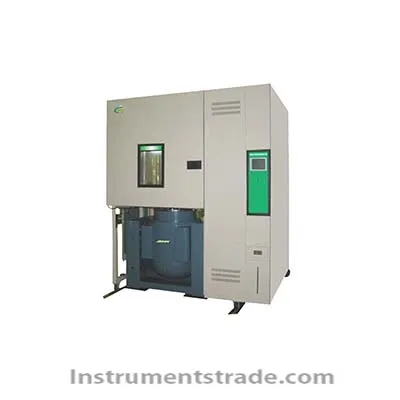

ATHV 40-2-336 - h complex environmental test chamber

Product ID：WHbr007

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model NumberATHV 40-2-336 - h

Brand NameYM

Payment TermsT/T, paypal

Brief introduction:
This equipment system independent type, vibration control system, but warm but wet control system: respectively is high temperature, low temperature, constant temperature and humidity, vibration testing of individual or composite test, adopting movable track design, can be easy to operate gently composite test or individual function test. Using large LCD LCD setting display of programmable control system in both English and Chinese, with 140 groups of program memory capacity. With PD - 232 - c computer interface device.
Technical indicators:

Model	ATHV-336	ATHV-512	ATHV-720
Internal dimensions.W×H×D(mm)	600×800×700	800×800×800	900×800×1000
External dimensions.W×H×D(mm)	1740×1900×1120	1940×1900×1220	2040×1900×1420
Temp. Range	0℃、-20℃、-40℃～+150℃
Humidity Range	20%RH～98%RH
Frequency Range	3～2000Hz
Max.Displacement	25mm
Rated Force	200Kgf
Control system	1P Programmarle control+Sine wave control system
Power Source	AC 3￠ 380V 60/50HZ

Brief introduction:
This equipment system independent type, vibration control system, but warm but wet control system: respectively is high temperature, low temperature, constant temperature and humidity, vibration testing of individual or composite test, adopting movable track design, can be easy to operate gently composite test or individual function test.
