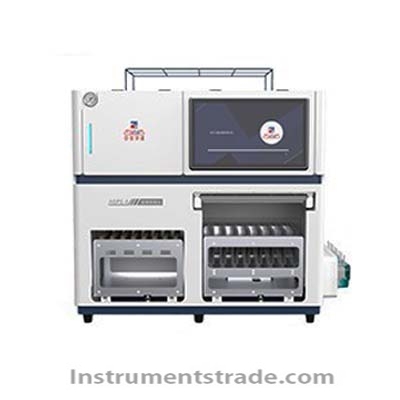

ASPE-8 Automatic Solid Phase Extraction Instrument

Position: Home > > Lab general equipment > Separation / extraction equipment > Solid phase extraction > ASPE-8 Automatic Solid Phase Extraction Instrument

ASPE-8 Automatic Solid Phase Extraction Instrument

Product ID：SYFLCQgx051

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberASPE-8

Brand NameZHONGYIYUSHENG

Payment TermsTT，PAYPAL，Alibaba.com Pay

ASPE-8 Automatic Solid Phase Extraction Instrument
Product Introduction
The ASPE-8 Automatic Solid Phase Extraction Instrument is a fully automated SPE sample preparation system designed to perform activation, sample loading, washing, elution, drying and waste handling with minimal operator intervention. Equipped with 8 independent channels and precision syringe pumps, the system can process 8 samples simultaneously and continuously automate up to 80 samples when using 1, 3, 6, 12 or 20 mL SPE cartridges.
The ASPE-8 supports liquid, large-volume water, viscous and other sample preparation workflows. Its flexible solvent selection, programmable SPE cartridge sealing, automatic positioning, nitrogen drying, separate waste collection and Windows-based wireless control software make it suitable for high-throughput laboratory sample preparation.

Performance Features
•   Fully automated SPE workflow: Automatically performs cartridge activation, sample loading, washing, elution, drying and other programmed steps.
• 8-channel parallel processing: Eight samples can be processed simultaneously through 8 independent channels.
•   High-throughput capacity: Up to 80 samples can be continuously processed with 1, 3, 6, 12 or 20 mL SPE cartridges.
•  Large-volume sample processing: Optional large-volume loading module enables automated extraction and enrichment of large-volume water samples, with 80-sample continuous batch capability.
•   8 solvent selections: Each channel uses a 12-port valve to select among 8 solvents, sample, extraction, air and waste paths.
•  Precision syringe pumps: 8 or more independent high-precision syringe pumps provide a flow rate of 0.1–100 mL/min.
• Automatic cartridge sealing: The SPE cartridge rack is automatically positioned, and the sealing pin descends to seal cartridges in sequence.
•   Adjustable sealing height: The O-ring seals against the inner wall of the SPE cartridge. Sealing height can be software-adjusted from 2.0–5.0 cm.
•   Dual-needle structure: Separate sample loading and cartridge sealing needles reduce the risk of cross-contamination; both needles receive corrosion-resistant treatment.
•   Automatic immunoaffinity cap removal: Mechanical movement automatically removes cartridge caps, which are collected in a dedicated cap collection tray.
•   Automatic solvent-line cleaning: Independent solvent lines and automatic cleaning help maintain the fluid path.
•   Automatic nitrogen drying: External nitrogen with a three-way valve provides stable flow for in-line SPE cartridge drying.
•   Flexible racks: Multiple sample racks, collection racks and concentration cups are available, including concentration cups with tail tubes.
•   Automatic positioning: Sample, collection and SPE cartridge racks can move independently and automatically locate their working positions.
•   Active collection-tube alignment: Collection tubes automatically align with cartridge outlets to reduce splashing and cross-contamination.
•  Separated waste collection: Waste channels can separately collect wastewater, waste organic solvents and other hazardous waste for appropriate handling.
•   Compact design: The instrument can be installed inside a fume hood, with solvent bottles positioned above the main unit to save laboratory space.
•   One-touch rack movement: A dedicated button quickly moves the sample rack, collection rack and cartridge rack for convenient replacement.
•   Wireless Windows software: The control software communicates with the SPE instrument via Wi-Fi, allowing the computer to be positioned away from the laboratory workbench.
•  Intelligent software assistance: Method-editing error reminders, real-time monitoring, comprehensive logs and intelligent alarm prediction improve operational traceability.

Working Principle
The ASPE-8 performs solid phase extraction through a programmable sequence of cartridge activation, sample loading, washing, elution and collection.
The selected solvent is delivered through the corresponding solvent line and 12-port valve to the appropriate SPE channel. The precision syringe pump controls the flow rate, while the SPE cartridge is automatically positioned and sealed at the preset height.
After the sample passes through the SPE sorbent, target compounds are retained while unwanted matrix components are removed during washing. The selected elution solvent then releases the retained compounds into collection vessels or concentration cups.
For large-volume samples, the optional loading module enables automated processing and enrichment of large water samples. After extraction, nitrogen can be automatically introduced for in-line drying of the SPE cartridge.
The software controls the complete workflow, monitors instrument status and records operational logs, enabling automated batch SPE sample preparation with reduced manual intervention.

Technical Parameters

Parameter	Specification
Model	ASPE-8
Automation	Fully automatic
Parallel Channels	8
Simultaneous Samples	8
Continuous Batch Capacity	Up to 80 samples
Compatible SPE Cartridge Volumes	1, 3, 6, 12, 20 mL
Sample Volume	Any volume; large-volume module available
Syringe Pumps	8 or more independent precision pumps
Flow Rate	0.1–100 mL/min
Valve Configuration	8 sets of 12-port valves
Solvent Selection	8 organic solvents
Sealing Height	2.0–5.0 cm, software adjustable
Sample Loading	Automatic
Cartridge Sealing	Automatic
Cartridge Cap Removal	Automatic
Solvent-Line Cleaning	Automatic
Nitrogen Drying	Automatic, external nitrogen connection
Sample Rack	Multiple specifications available
Collection Rack	Multiple specifications available
Concentration Cups	Multiple specifications, optional tail tubes
Rack Movement	Independent automatic movement and positioning
Waste Handling	Separate collection of wastewater, organic solvent and other hazardous waste
Control Software	Windows-based
Software Connection	Wi-Fi wireless connection
Monitoring	Real-time status monitoring and alarms
Data Traceability	Logs and process records

Application Scenarios
The ASPE-8 automatic SPE system is suitable for high-throughput sample preparation in:
• Environmental analysis: Extraction and enrichment of water samples and other environmental samples.
•   Food safety testing: Sample cleanup and target-compound enrichment.
•   Pharmaceutical analysis: Automated SPE sample preparation and purification.
•   Clinical and biological laboratories: Automated extraction workflows where SPE is applicable.
•   Petroleum and chemical analysis: Preparation of complex or viscous samples.
• Large-volume water analysis: Automated extraction and concentration of large-volume water samples.
• Research laboratories: Method development and programmable SPE workflows.
• High-throughput laboratories: Continuous unattended processing of large sample batches.

ASPE-8 vs. Manual Solid Phase Extraction

Feature	ASPE-8 Automatic SPE System	Manual SPE
Operation	Fully automated	Manual
Parallel Processing	8 channels	Usually operator-dependent
Continuous Batch Capacity	Up to 80 samples	Limited by operator
Solvent Selection	8 automatic solvent selections	Manual switching
Flow Control	Precision syringe pumps	Manual or external control
Cartridge Sealing	Automatic	Manual
Nitrogen Drying	Automatic	Usually manual
Rack Positioning	Automatic	Manual
Large-Volume Samples	Optional automated module	Labor-intensive
Waste Separation	Automated	Manual
Cross-Contamination Control	Dual-needle + active alignment	Operator-dependent
Process Monitoring	Real-time software monitoring	Limited
Traceability	Comprehensive logs	Manual records
Unattended Operation	Supported	Not practical

FAQ
1. How many samples can the ASPE-8 process simultaneously?
The system has 8 independent SPE channels and can process 8 samples simultaneously.
2. What is the maximum continuous sample capacity?
With compatible 1, 3, 6, 12 or 20 mL SPE cartridges, the system can continuously automate up to 80 samples.
3. Can the ASPE-8 process large-volume water samples?
Yes. An optional large-volume loading module enables automated extraction and enrichment of large-volume water samples, with continuous processing of up to 80 samples.
4. How many solvents can be selected automatically?
The system provides 8 organic solvent selections through independent solvent lines and 12-port valves.
5. What is the syringe pump flow range?
The high-precision syringe pumps provide a continuously adjustable flow rate of 0.1–100 mL/min.
6. Can the SPE cartridge sealing height be adjusted?
Yes. The sealing height can be programmed through software within a range of 2.0–5.0 cm.
7. Does the ASPE-8 provide automatic SPE cartridge drying?
Yes. An external nitrogen supply and three-way valve are used for automatic in-line SPE cartridge drying with stable flow.
8. How does the system help reduce cross-contamination?
The dual-needle structure separates sample loading from cartridge sealing. Active collection-tube alignment and dedicated waste handling further reduce splashing and potential cross-contamination.
9. Can the instrument operate unattended?
Yes. The ASPE-8 is designed for fully automated operation and supports batch processing, real-time monitoring, alarm prediction and comprehensive process logging.
