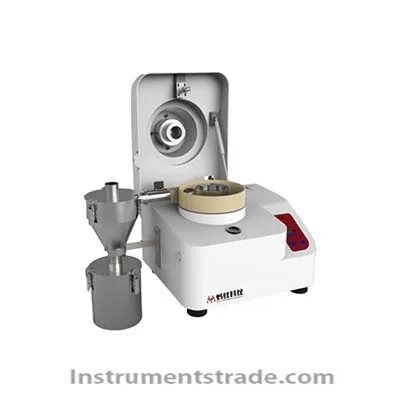

AM500 high speed rotary grinder

Product ID:SYFSymqm0042

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberAM500
    Brand NameMAYIYUAN
    Payment TermsT/T, paypal
    AM500 high speed rotary grinder

    Introduction
    AM500 is called the “universal warrior” of the laboratory. It generally handles soft, medium-hard, brittle, tough, and fibrous samples. The higher rotation speed makes the sample pulverize in a very short time, so the grinding process is “immediately That is out." The whole instrument pays great attention to detail from injection to sample, and the design of anti-backlash funnel ensures the sample is in and out; the design of plug-in rotary cutter and sieve ring is more convenient to clean; the collection of samples can be carried out; The digital display control panel is easy to operate and steplessly adjustable. In addition, the instrument can be configured with an autosampler and a cyclone to accommodate sample preparation for different needs and types.
    Features
    1.High speed and fast grinding speed
    2.Multiple rotary cutters and sieve rings are available for a wide range of applications
    3.The sieve ring has a small aperture and the final sample size is small.
    4.The grinding kit can be arranged with the tray, the sample collection is convenient, no loss
    5.Funnel anti-back splash design, grinding chamber dust seal, extending instrument life
    6.The grinding chamber lock is automatically sucked and pressed
    7.Parameter setting is simple and convenient, digital display
    8.The control panel has an overload bar display to help control the injection volume and feed rate.
    9.The instrument is equipped with a safety lock device to ensure the safety of operators.
    10.The instrument is equipped with an autosampler and cyclone separator for large sample size preparation.
    Technical Parameters
    Sample type: soft, medium hard, brittle, elastic, fibrous material
    Feed size: up to 10mm
    Discharge size: minimum 40um
    Sample throughput: Standard collection tray 300ml (disc volume 900ml) cyclone separator up to 4500ml
    Speed: 6000rpm-20000rpm
    Application grinding range: dry grinding, low temperature grinding under liquid nitrogen
    Collection volume and material: 900ml stainless steel, 900ml titanium, PTFE 900ml
    Number of teeth: 6 teeth, 12 teeth, 24 teeth
    Rotary knife material: stainless steel, titanium
    Screen ring diameter: trapezoidal hole 0.25mm, 0.5mm, 1.0mm, 1.5mm
    Round holes 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
    Sieve material: stainless steel, titanium
    Instrument size: High-speed rotary grinder AM500
    Width × height × depth: 470 × 630 × 550mm
    Net weight: 25kg
    Power: 750W

  • Introduction
    AM500 is called the “universal warrior” of the laboratory. It generally handles soft, medium-hard, brittle, tough, and fibrous samples. The higher rotation speed makes the sample pulverize in a very short time, so the grinding process is “immediately That is out." The whole instrument pays great attention to detail from injection to sample, and the design of anti-backlash funnel ensures the sample is in and out; the design of plug-in rotary cutter and sieve ring is more convenient to clean; the collection of samples can be carried out; The digital display control panel is easy to operate and steplessly adjustable. In addition, the instrument can be configured with an autosampler and a cyclone to accommodate sample preparation for different needs and types.
