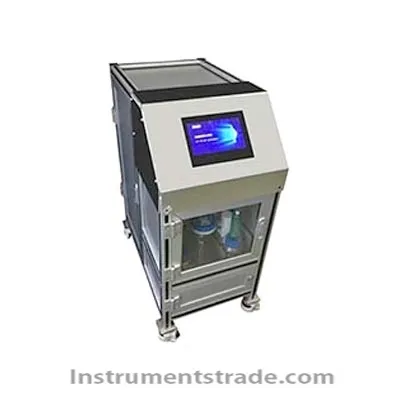

ALT-1 Industrial Online Process Titration Analyzer Introduction:
In the industrial production process, analytical instruments are needed to monitor the production process, such as analyzing raw material and product quality, and analyzing the material concentration of each node in the production process. At present, it is sampled by hand to the production line, and then sent to the laboratory for analysis. When conditions change and fluctuate, the analysis result is often wrong. Laboratory analysis is slow, time-consuming and labor-intensive, lacking timeliness, and it is difficult to directly and effectively control the production process.
ALT-1 Online Potentiometric Titrator is an unattended industrial process online analytical titrator independently developed by our company. It completely replaces manual analysis and can realize automatic sampling, sample loading, signal measurement, titration analysis, automatic cleaning and sending. The result of the analysis is sent to the server. The process from automatic sampling to obtaining the analysis result is about 10 minutes. After receiving the analysis result, the server can adjust the production feeding according to the analysis data in real time to meet the requirements of modern production process control.
ALT-1 online potentiometric titrator with A8 processor, modular design, seven-inch Chinese man-machine dialogue full-color touch screen, high-precision burette, electromagnetic switching valve, long-life solvent pump, high-resolution color acquisition module and various detection The module can indicate the end point of the titration by measuring the potential change of the electrode and the automatic judgment of the color change. According to the nature of the sample, the instrument uses different electrodes and detectors for automatic color titration, pH titration, redox titration, complexometric titration, non- Various titrations such as water titration and precipitation titration are suitable for chemical, environmental protection, food, pharmaceutical, paper, textile, metallurgy, metal surface treatment, water treatment and other fields. Features:
1. With 7-inch color LCD touch screen, Chinese interface, easy to operate, easy to learn and understand;
2. The user can select different end point judgment methods according to different tests, and can fix the end point value to judge the end point, set the end point judgment interval and the differential combination judgment end point or automatically judge the end point, and the titration method can be added, edited and called;
3. The instrument can be used for different titrations such as color titration, acid-base titration, redox titration, complexometric titration, non-aqueous titration and pH measurement, and temperature probe for pH titration temperature compensation;
4. With potential correction, electrode correction, PH correction, metering tube volume correction function;
5. The calculation formula of the analysis result can be edited and stored, and the final result is automatically calculated and sent to the server after the analysis is completed;
6. Adopt box structure, the circuit and wet chemical part are completely separated, the hardware adopts modular design, each module is combined according to analysis requirements, and CANBUS communication is adopted between each module;
7. The software is divided into online analysis module, server module and process control module, which can be flexibly customized according to customer needs;
8. The automatic analysis time interval is adjustable;
9. The online analysis module can edit, modify and store the analysis automation process; including online automatic sampling, automatic sample loading, automatic analysis, automatic cleaning, automatic data storage;
10. The server database can store more than 10,000 analysis records, action command processes and alarm records to facilitate data traceability;
11. The process control module can monitor the status of multiple online analyzers and develop the automatic control function of the feed pump according to customer needs;
12. With liquid level monitoring alarm function, with analysis result abnormal alarm function. Technical Parameters:
Display: 7.0-inch high-definition full-color touch display
Measuring range: -2000mV~2000mV; 0-14 pH value; -55~125°C
Titration repeatability: RSD ≤ 1%
Resolution: 0.1mV; 0.001pH; 0.1°C
Burette specifications: 20mL (standard); accuracy 0.15%
Titration mode: fixed endpoint titration, blank titration, dynamic titration, pH calibration and measurement
