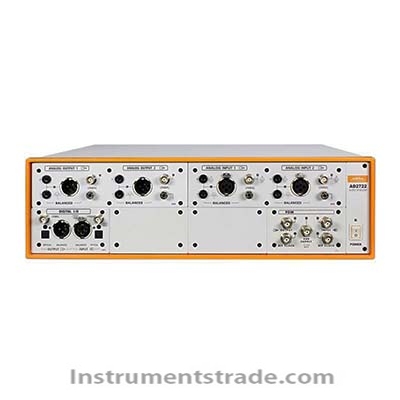

AD2722 Audio Analyzer

Product ID：CLQTsxjly039

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAD2722

Brand NameDGAOPUXIN

Payment TermsTT，PAYPAL，Alibaba.com Pay

AD2722 Audio Analyzer
Product Introduction
AD2722 Audio Analyzer is a high-performance precision audio measurement instrument designed for advanced audio laboratories, electroacoustic research, and professional audio equipment testing. Known as a premium-class audio analyzer, AD2722 provides an ultra-low distortion signal source with residual THD+N performance down to -117dB, delivering an extremely pure and accurate signal path for high-end audio measurement applications.
With standard analog and digital interfaces, as well as optional expansion modules including Bluetooth, HDMI ARC, I2S, PDM, and DSIO, AD2722 can be configured as a complete electroacoustic analysis platform for testing amplifiers, speakers, headphones, audio chips, smart devices, and digital audio systems.
The instrument integrates signal generation, audio analysis, automated testing, and report generation functions, enabling users to complete comprehensive audio performance evaluations within seconds without programming.

Key Features
• Ultra-low distortion signal generation
Residual output THD+N reaches < -117dB, providing laboratory-grade signal purity for demanding audio measurements.
• Professional multi-channel audio analysis capability
Supports up to 8-channel analog input and 8-channel analog output configuration, suitable for complex multi-channel audio systems.
• Complete electroacoustic testing platform
Supports expansion interfaces including BT, HDMI ARC, I2S, PDM, and DSIO for digital audio device testing.
• Fast automated measurement
No programming required. Complete comprehensive audio testing within approximately 3 seconds.
• Flexible software development support
Compatible with LabVIEW, VB, C#, Python, and other programming environments for secondary development.
• Automatic test report generation
Supports generating test reports in multiple formats for quality control and production environments.
• Digital audio stream playback support
Compatible with Dolby and DTS digital stream playback testing.

Applications
AD2722 Audio Analyzer is widely used in:
• Audio equipment R&D laboratories
• Loudspeaker and headphone performance testing
• Power amplifier and receiver testing
• Bluetooth audio device evaluation
• Smart speaker and consumer electronics testing
• Audio IC and codec verification
• Digital audio interface analysis
• Production line quality inspection

Working Principle
AD2722 combines a high-precision signal generator with advanced audio analysis technology to evaluate the electrical and acoustic performance of audio devices.
The instrument generates highly accurate test signals, including sine waves, sweep signals, noise signals, and WAV files, which are transmitted to the device under test. The analyzer then captures output signals through analog or digital interfaces and performs detailed measurements including:
• Total harmonic distortion plus noise (THD+N)
• Frequency response
• Signal-to-noise ratio
• Harmonic analysis
• Intermodulation distortion
• Phase characteristics
• Frequency accuracy
• Noise performance
The measurement results can be automatically processed, displayed, and exported through the integrated audio analysis software.

Technical Specifications
Analog Output

Parameter	Specification
Channels	2 channels, balanced/unbalanced
Signal Types	Sine wave, dual-tone sine wave, inverse phase sine wave, sweep signal, noise signal, WAV file
Frequency Range	DAC: 0.001Hz~80kHz; Analog: 5Hz~204kHz
Frequency Accuracy	±0.0003%
Output Voltage	Balanced: 0~26.6Vrms; Unbalanced: 0~13.3Vrms
Residual THD+N	< -117dB @22kHz BW; < -120dB @1kHz 2.0V
Flatness	±0.01dB (20Hz~20kHz)
Output Impedance	Balanced: 40Ω/100Ω/150Ω/200Ω/600Ω; Unbalanced: 20Ω/50Ω/75Ω/100Ω/600Ω

Analog Input

Parameter	Specification
Channels	2 channels, balanced/unbalanced
Maximum Input Voltage	230Vpk
Voltage Measurement Flatness	±0.01dB (20Hz~20kHz)
Harmonic Analysis	2nd~10th harmonic
Residual Input Noise	<1μV @20kHz BW
Maximum FFT Length	1248k
Intermodulation Distortion Modes	SMPTE, MOD, DFD
Frequency Measurement Range	2Hz~1MHz
Frequency Measurement Accuracy	±0.0003%
Phase Measurement Range	-90°~270°, ±180°, 0~360°
Input Impedance	Balanced: 300Ω/600Ω/200kΩ; Unbalanced: 300Ω/600Ω/100kΩ

AUX Module

Parameter	Specification
AUX Level	High level: 5V; Low level: 0V
Default Output	Low level
Default Input	High level
PIN Configuration	PIN1-8: IN/OUT 1-8; PIN9: GND

General Specifications

Parameter	Specification
Operating Temperature	-10°C~40°C
Housing Material	Metal enclosure
Control Software	KK Audio Analyzer Software
Rated Voltage	AC 100V~240V
Rated Power	160VA
Dimensions (W×D×H)	440mm × 470mm × 135mm

Optional Interface Expansion
AD2722 supports various optional modules to meet different audio testing requirements:

Expansion Module	Application
Bluetooth Module	Wireless audio device testing
HDMI ARC Module	HDMI audio equipment testing
I2S Module	Digital audio chip and embedded system testing
PDM Module	Digital microphone and sensor testing
DSIO Module	Professional digital audio interface testing

AD2722 vs Conventional Audio Analyzers

Comparison Item	AD2722 Audio Analyzer	Conventional Audio Analyzer
THD+N Performance	Up to -117dB ultra-low distortion	Usually -100dB level
Channel Capability	Multi-channel expandable architecture	Limited channels
Digital Interface Support	BT/HDMI/I2S/PDM/DSIO	Limited options
Automation	3-second automatic comprehensive testing	Requires manual configuration
Software Integration	LabVIEW/Python/C#/VB support	Limited development capability
Application Range	R&D + production + verification	Mainly basic measurement

FAQ
1. What is AD2722 Audio Analyzer mainly used for?
AD2722 is mainly used for precision audio testing, including amplifiers, speakers, headphones, Bluetooth devices, digital audio products, and audio integrated circuits.
2. What makes AD2722 different from ordinary audio analyzers?
The key advantage of AD2722 is its ultra-low distortion signal source, with residual THD+N reaching -117dB, providing extremely high measurement accuracy for high-end audio applications.
3. Can AD2722 test digital audio devices?
Yes. With optional expansion modules, AD2722 supports Bluetooth, HDMI ARC, I2S, PDM, and DSIO digital interfaces.
4. Does AD2722 support automated production testing?
Yes. The system supports automated testing procedures and can generate test reports automatically, making it suitable for production line quality inspection.
5. Can users develop customized test software?
Yes. AD2722 supports secondary development using LabVIEW, VB, C#, Python, and other programming languages.
6. What industries need AD2722 Audio Analyzer?
It is widely used in consumer electronics, automotive audio, communication devices, semiconductor audio chip testing, and professional audio equipment manufacturing.

Conclusion
AD2722 Audio Analyzer is a premium high-precision audio measurement solution combining ultra-low distortion signal generation, multi-channel analysis, digital interface expansion, and automated testing capabilities. With laboratory-level performance and flexible software integration, it is an ideal choice for advanced electroacoustic research, product development, and audio quality
