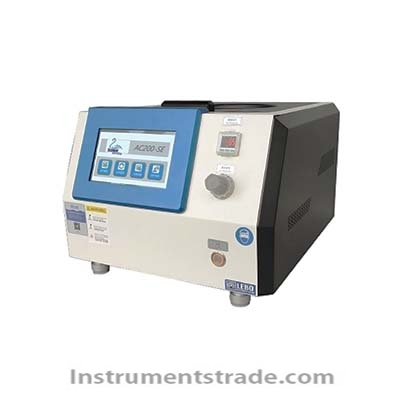

AC200-SE Electron Microscope Sample Preparation Ultra Thin Slicer Introduction: The AC200-SE electron microscope ultra-thin slicer adopts a brand new design, and the slicing motion adopts a DC brushless motor to improve motion stability; Humanized design, loading and unloading process, reducing sample damage; Digital operation interface, one click return button, easy to operate; The equipment is compatible with various widths of cutting tools and suitable for various process operations; Load separation control box slot to ensure slice quality; External type microscope, capable of real-time recording of experimental steps. Technical Parameter Maximum resolution: 0.625nm Total slicing stroke: 300um (can provide 3000 100nm conventional slices) Slice speed adjustment accuracy: 0.1mm/s Adjustable slicing speed range: 5mm/s~60mm/s Slice thickness accuracy: 10nm Adjustable range of slice thickness: 10nm~1000nm Precision of forward and backward movement of the cutting table: 0.5um Precision of left and right movement of the cutting table: 10um Precision of tool table rotation motion: 0.1 ° Stereoscopic microscope magnification: 10X~90X Main body dimensions (including stereomicroscope): 740mm (W) * 300mm (D) * 517mm (H) Power control box size: 250mm (W) * 280mm (D) * 133mm (H)
Introduction: The AC200-SE electron microscope ultra-thin slicer adopts a brand new design, and the slicing motion adopts a DC brushless motor to improve motion stability; Humanized design, loading and unloading process, reducing sample damage; Digital operation interface, one click return button, easy to operate; The equipment is compatible with various widths of cutting tools and suitable for various process operations; Load separation control box slot to ensure slice quality; External type microscope, capable of real-time recording of experimental steps.
