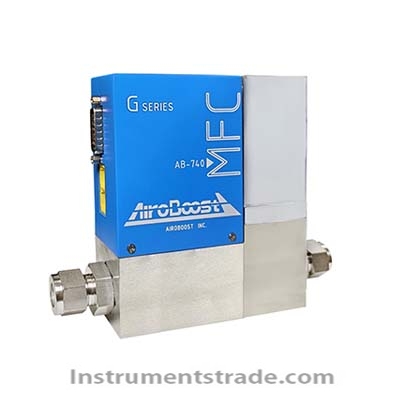

AB-740 Gas Mass Flow Controller

Product ID：HQQTpqsb009

Price: Please inquire PDF Format

Supply Ability:50 SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberAB-740

Brand NameBJXIAOTAO

Payment TermsTT，PAYPAL，Alibaba.com Pay

AB-740 Gas Mass Flow Controller
Introduction:
Gas mass flow controller can accurately measure and control the mass flow rate of gas; Gas mass flow meters can accurately measure the mass flow rate of gases. The main industries in which this product is applied include: chemical industry, petrochemical industry, LNG industry, semiconductor materials and microelectronics industry, pharmaceutical industry, special materials research, environmental protection and vacuum industry, etc. The equipment that uses this product mainly includes: vacuum coating equipment, gas mixing and distribution equipment, fiber optic melting equipment, crystal preparation equipment, microelectronics equipment, microreactors, gas chromatographs, and other analytical instruments.
This product has the advantages of stability and reliability, short response time, high calibration accuracy and repeatability, easy installation, no installation position or straight pipe section requirements, simple operation, and can be used with flow display instruments or other display instruments. It can also be used with computers through analog/digital signal converters (AD/DA converters).
Technical parameters:

Basic model	AB-740
Flow specification 1 (N2 calibration)	0～50,100,200,250 SLM
Type of regulating valve	normally closed
Range ratio	(2-100)% F.S. or 50:1
Traffic resolution	0.1％F. S.
accuracy	±2％F. S.
repeatability	±0.2％F. S.
response time	≤3sec
Range of working pressure difference	0.15～0.3MPa
Maximum withstand voltage	2MPa
Ambient Temperature	5～45℃
cable joint	DB15pin (needle shaped)
input/output signal	0~+5.00V (input impedance greater than 100k Ω, output current not exceeding 3mA) RS485 MODBUS
Power supply requirements	24VDC(500mA)
External single point leakage rate	≤1×10-8Pa·m3/S(He)
Material in contact with the medium	316316L, sealing packing
Sealing material	Chloroprene rubber CR, fluororubber FKM
Pipeline interface size	VCR type connector: 1/2 "
Pipeline interface size	Double cardsleevetype connector: 3/8 ", 1/2" or φ 10 φ12mm
External dimensions	Length x Width x Height: 170 x 141 x 45 mm
Net weight	3.5kg

Introduction:
Gas mass flow controller can accurately measure and control the mass flow rate of gas; Gas mass flow meters can accurately measure the mass flow rate of gases. The main industries in which this product is applied include: chemical industry, petrochemical industry, LNG industry, semiconductor materials and microelectronics industry, pharmaceutical industry, special materials research, environmental protection and vacuum industry, etc. The equipment that uses this product mainly includes: vacuum coating equipment, gas mixing and distribution equipment, fiber optic melting equipment, crystal preparation equipment, microelectronics equipment, microreactors, gas chromatographs, and other analytical instruments.
This product has the advantages of stability and reliability, short response time, high calibration accuracy and repeatability, easy installation, no installation position or straight pipe section requirements, simple operation, and can be used with flow display instruments or other display instruments. It can also be used with computers through analog/digital signal converters (AD/DA converters).
