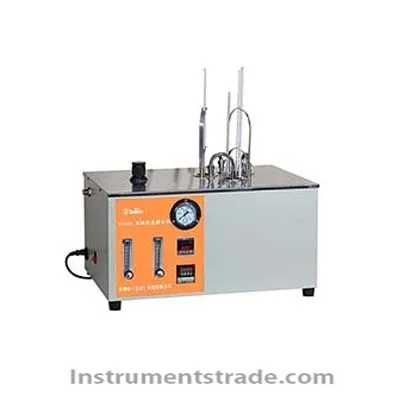

A2080 actual colloid analyzer Introduction
The A2080 actual gum analyzer conforms to GB / T 509, GB / T 8019, and ASTM D381. It is used to determine the gum formed when gasoline, kerosene, and diesel oil vaporize, that is, the record of gum caused by fuel oil when used in engines. Features
Adopt German installed temperature sensor.
The heating speed is fast, the constant temperature precision is high, and the metal bath is constant temperature.
No noise and pollution-free air distribution is even and stable. Technical Parameters
Original temperature measurement: the original temperature measurement sensor from Germany JUMO company
Bath constant temperature range: 0 ～ 300 ℃
Constant temperature point and accuracy: 150 ± 1.0 ℃ 180 ± 1.0 ℃ 250 ± 1.0 ℃; can be set by yourself
Power consumption: less than 2500W
Oil bath: Φ200 × 220mm Rated current: 10A
Temperature control accuracy: ± 1 ℃
Temperature sensor: PT100
Number of test holes: 3
Flow range of flow meter: 40 ～ 70L / min
Relative humidity: ≤85%
Thermometer: 0 ～ 360 ℃ division value 1.0 ℃
Ambient temperature: 5 ℃ ～ 40 ℃
Working power: AC220V ± 10%, 50Hz
Dimensions: 560mm × 400mm × 320mm
Weight: 30.9kg
Introduction
The A2080 actual gum analyzer conforms to GB / T 509, GB / T 8019, and ASTM D381. It is used to determine the gum formed when gasoline, kerosene, and diesel oil vaporize, that is, the record of gum caused by fuel oil when used in engines.
