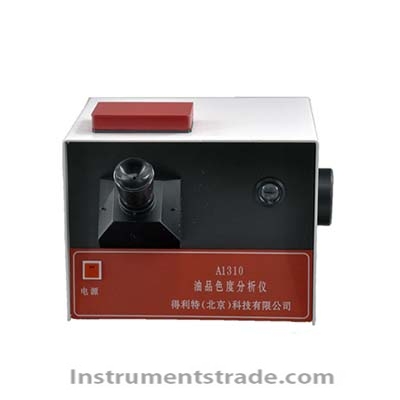

A1310 Petroleum Products Colorimeter

Product Overview
The A1310 Petroleum Products Colorimeter is designed for determining the color of lubricating oils and other petroleum products. The instrument complies with SH/T 0168-92 and provides a petroleum product color scale from No. 1 to No. 25, corresponding to the standard color grades used in GB 6540.
During measurement, the petroleum sample is placed into a glass color comparison tube and visually compared with standard color glass plates under a controlled light source. The corresponding color number is then determined according to the closest visual match.

Key Features
• Standard color comparison: Uses calibrated standard color glass plates for direct visual comparison of petroleum product samples.
• Uniform illumination: A frosted opal lamp provides the light source, which is filtered before illuminating both the standard color plate and sample tube.
• Optical observation system: The eyepiece provides light adjustment and focusing functions for convenient observation.
• Simple operation: The instrument consists of a standard color disk, optical viewing system, light source, and color comparison tube.
• Wide color range: Supports petroleum color measurement from No. 1 to No. 25.

Working Principle
A petroleum product sample is placed into the specified color comparison tube and positioned in the optical observation system. The filtered light source uniformly illuminates both the sample and the standard color glass plates on the color disk.
The operator observes the sample and standard color simultaneously through the optical eyepiece and compares their color appearance. The color grade corresponding to the closest standard glass plate is identified as the measured petroleum product color.

Technical Specifications

Item	Specification
Model	A1310
Applicable Standard	SH/T 0168-92
Corresponding Standard	GB 6540
Color Range	No. 1–25
Color Comparison Tube Inner Diameter	Φ32 mm
Color Comparison Tube Height	120–130 mm
Standard Color Disk	26 Φ14 mm observation holes
Standard Color Plates	25 plates corresponding to No. 1–25 color grades
Blank Position	1 blank hole
Light Source	Frosted opal lamp
Optical System	Viewing eyepiece with light adjustment and focusing
Ambient Temperature	5–40°C
Relative Humidity	≤85% RH
Power Supply	AC 220 V ±10%, 50 Hz ±10%
Power Consumption	<500 W
Dimensions	400 × 320 × 295 mm
Weight	21 kg

Applications
• Lubricating oil color determination
• Petroleum product quality inspection
• Refineries and petrochemical laboratories
• Oil blending and production quality control
• Petroleum product research and testing
• Quality inspection laboratories

Comparison

Feature	A1310 Petroleum Products Colorimeter	Basic Visual Color Comparison	Digital Colorimeter
Measurement Method	Standard color glass comparison	Visual comparison	Electronic optical measurement
Petroleum Color Scale	No. 1–25	Depends on standard	Depends on instrument
Standard Color Plates	Integrated	Usually required separately	Not normally required
Controlled Illumination	Yes	Usually basic	Electronic light source
Optical Focusing	Yes	Limited	Not applicable
Sample Tube	Dedicated color comparison tube	Varies	Instrument-specific
Result Reading	Standard color number	Visual color number	Digital value
Operation	Manual visual comparison	Manual visual comparison	Instrument-assisted
Typical Application	Petroleum and lubricating oil color testing	Basic color inspection	Quantitative color analysis

Applicable Standards
• SH/T 0168-92 — Petroleum Products Color Determination
• GB 6540 — Petroleum Products Color Scale

FAQ
Q1: What products can be tested with the A1310?
A: It is primarily designed for lubricating oils and other petroleum products requiring color determination.
Q2: What is the measurement range of the A1310?
A: The instrument provides color grades from No. 1 to No. 25.
Q3: How is the petroleum product color determined?
A: The sample is placed in the color comparison tube and visually compared with the standard color glass plates under filtered, uniform illumination. The corresponding standard color number is then determined.
Q4: What type of light source does the instrument use?
A: It uses a frosted opal lamp as the illumination source. The light is filtered before reaching the sample and standard color plates.
Q5: Does the optical system support focusing?
A: Yes. The optical eyepiece provides both light adjustment and focusing functions.
Q6: What are the environmental requirements?
A: The recommended operating temperature is 5–40°C with relative humidity of no more than 85%.
Q7: What standards does the A1310 comply with?
A: The supplied specifications state compliance with SH/T 0168-92, with the color scale corresponding to GB 6540.
