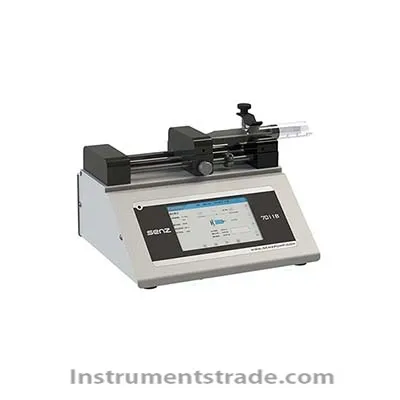

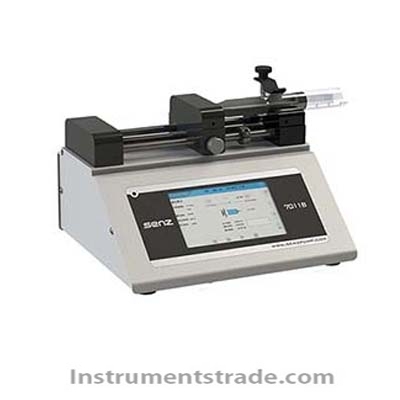

Introduction: 7011B single-channel basic syringe pump 5-inch high-definition touch LCD screen, beautiful interface, easy to operate, real-time display of operating parameters and status. Features: 1. Working mode: perfusion 2. Syringe selection: built-in three brand syringes, support custom syringes 3. Calibration function: support syringe calibration and store syringe parameters 4. Power-down memory: remember the current running parameters when power is off, continue to run after power-on 5. Online adjustment: the current flow rate can be adjusted during operation 6. Prompt function: display the currently available maximum/minimum flow rate in real time, dynamically display relevant parameters 7. Reminder function: running target liquid volume, audible alarm prompt 8. Thrust setting: can set the appropriate thrust according to the specifications of the syringe 9. External control: external control signal (5 ~ 24v), to achieve start and stop control 10.RS485/USB: The address can be set and displayed on the screen, the baud rate is 1200~9600 bps 11. Status output: start and stop, direction, alarm Technical Parameters: Maximum stroke: 140mm Stroke resolution: 0.0625um/μstep line speed range: 0.08um/min-160mm/min Linear thrust: 160N Applicable syringe specifications: 0.5ul-60ml Applicable power supply: AC90-264V 50-60Hz Working environment: Temperature: 0-40 °C Humidity: 20%-85% RH No condensation Protection level: IP31 Dimensions: 210x240x145 mm
Introduction: 7011B single-channel basic syringe pump 5-inch high-definition touch LCD screen, beautiful interface, easy to operate, real-time display of operating parameters and status.
