Sales 5KF20(2mp 3000 frames) high speed camera，Manufacturer

Position: Home > > Measurement instrument > Other measuring/measurement instrument > Video camera > 5KF20(2mp 3000 frames) high speed camera

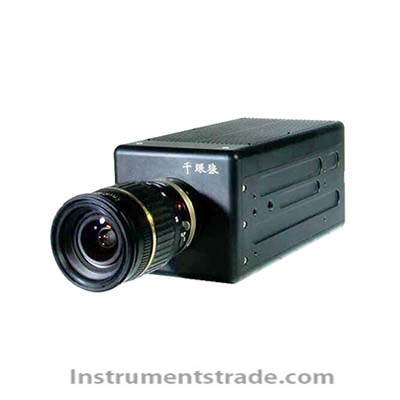

5KF20(2mp 3000 frames) high speed camera

Product ID：CLQTsxj009

Price: Please inquire PDF Format

Supply Ability:20SETS/MON

Port:SHENZHEN

Product Introduction
Other information

Model NumberFHJD

Brand NameHFFHJDGKXXJS

Payment TermsTT，PAYPAL，Alibaba.com Pay

Brief introduction:
The 5KF20 high-speed camera supports USB 3.0 and gigabit Ethernet dual interfaces, built-in 1TB of high speed memory capacity, with up to 5GB/S image acquisition speed.
Product features:
1. Support ultra-high speed photography up to 2,500 frames/SEC for full frame, and up to 210,000 frames/SEC for small frame
2. High-speed data transmission of 5Gbps can quickly transfer video to PC;
3. Support multi-camera synchronous shooting with synchronization accuracy up to 1 microsecond;
4. Support electric lens of Sony E port, nikon F port and Canon EF port;
5. Acquisition synchronization control accurate to 1/100 microsecond;
6. Support intelligent image trigger function of 16 regions;
7. Remote control shutter release;
8. With encoder input interface, encoder data can be superimposed on the image to display;
9. With track tracking analysis software, the moving speed and acceleration of the target can be calculated;
10, free warranty for 3 years, domestic maintenance, 1 week to repair the fault, more than 1 week to provide replacement machine;
Application:
1, machine tool spindle and other high-speed rotary mechanical equipment status detection
2. Fluid dynamics research
3. High voltage discharge and lightning strike experiment
4. Product surface quality scanning
5. Precise time measurement
6. Product drop test and collision test
7. Three-dimensional high-speed measurement
Technical parameters:

Resolution ratio	1920×1080
Pixel size	10um×10um
Frame rate	Frame rate	Resolution ratio
	3000FPS	1920×1080
	4000FPS	1280×720
	5600FPS	1920×480
	42000FPS	1920×64
Maximum memory	32GB/64GB/128GB/1TB
Dynamic range	60
Precision	10bit
Sensitivity	ISO15000,550nm（black and white），ISO5000（multicolour）
Exposure time	1us
Shutter	Global shutter
colour	Monochrome/color
Window acquisition	Yes
Check	Yes
Power supply	12V
Interface	USB 3.0/1000BaseT
Lens interface	F/K/E/C
Power	＜26W
Dimensions (excl. lenses)	242mm×120mm×110mm

Brief introduction:
The 5KF20 high-speed camera supports USB 3.0 and gigabit Ethernet dual interfaces, built-in 1TB of high speed memory capacity, with up to 5GB/S image acquisition speed.
