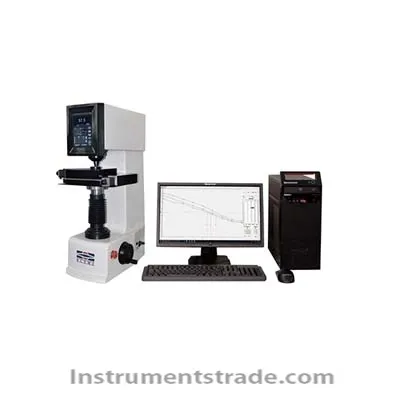

560RSSZ/V3.0 Fully Automatic Rockwell Hardness Tester

Product ID：WQyd053

Price: Please inquire PDF Format

Supply Ability:90 SETS/MON

Port:SHENZHEN

Product Introduction
Consulting

Model Number560RSSZ/V3.0

Brand NameSHANGHAISHANGCAI

Payment TermsT/T, paypal

560RSSZ/V3.0 Fully Automatic Rockwell Hardness Tester
Introduction
560RSSZ/V3.0 Fully automatic Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features. This instrument adopts the electric loading and unloading of test force instead of the weights, which can test all the Rockwell and superficial Rockwell hardness scales. It has fully automatic and manual operation function, XYZ automatic control, which is suitable for jominy end-quench test. With external PC computer, it has statistical function which can calculate the extreme value, average value, standard deviation, etc. and also can establish the corresponding statistics database. Statistics database allows inputting the detection data from other devices which can be used together for statistical analysis. The test report can be customized according to the user’s requirements, in the report you can select the test parameters, test results and the curve chart. The test results and test report can carry out network transmission and allows other computers to use the data to realize the network management.
Application range:Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Features
1.    Support for all the Rockwell and superficial Rockwell scales;
2.    Support for conversion scales of different kinds of hardness;
3.    With arc correction function;
4.    Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;
5.    Controlled by the computer, full range of XYZ mobile, fast and accurate;
6.    One key to complete the rising of the specimen, loading dwell and unloading of the indenter, displaying of the hardness value, homing of the test table; With the X-Y motorized test table, it can do the continuous test according to the path setting;
7.    With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be selected to delete and print out, and the software can generate the WORD report.
Technical Parameters

Model	560RSSZ/V3.0
Initial Test Force	3kgf (29.42N), 10kgf (98.07N)
Total Test Force	15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method	Automatic (Loading/Dwell/Unloading)
X-Y Test Table	Size: 250×160mm, Travel: 100×100mm, Dimension: 365×300×140mm The test table has multi-point settings, one key operation to achieve multi-point automatic test function. And it can add other functions according to customers’ requirement!
Operation	Automatic or Manual Lifting Screw, Automatic Rising and Homing, One Key to Complete
Display	Touch Screen, Menu Selection, Hardness Display, Parameter Setting, Data Statistics, Storage, etc.
Data Statistics	Test Number, Average / Maximum / Minimum Value, Repeatability, Set Upper and Lower Limits of Hardness Value with Warning Function, etc.
Test Scale	HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y
Conversion Scale	HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW
Data Output	USB Interface, RS232 Interface
Hardness Resolution	0.1HR
Dwell Time	0~99s
Max. Height of Specimen	210mm
Throat	150mm
Power Supply	AC220V，50Hz
Execute Standard	ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2
Dimension	535×410×890mm， Packing Dimension: 820×460×1170mm
Weight	Net Weight: 85kg，Gross Weight: 105kg

560RSSZ / V3.0 Fully Automatic Rockwell Hardness Tester is a high-tech product with a novel shape, complete functions, convenient operation, clear and intuitive display, and stable performance. 560RSSZ / V3.0 full-automatic Rockwell hardness tester has full-automatic and manual operation functions, XYZ full-automatic control, suitable for end quenching test; external PC computer with data statistics function, can calculate extreme values, average values, standard deviation Etc., can also establish the corresponding statistical database.
