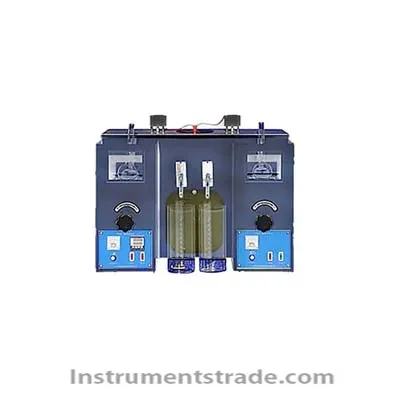

WM562C Manual Distillation Range Tester (Double Tube) Features
1. Conforms to the national standard GB / T 6536 "Determination of Distillation of Petroleum Products". Widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
2. It is used for the distillation characteristics of gasoline, diesel, kerosene, fuel oil and other mineral oils under normal pressure.
3. The heating electric furnace wire is packaged with quartz glass tube, no open flame, safe and reliable, and long service life.
4. The heating electric furnace can be adjusted up and down through the knob, which can easily adjust the optimal position of the distillation flask.
5. The power of the heating furnace can be continuously and continuously adjusted from low to high through the adjustment knob of the control panel.
And displayed by the meter
6. Configurable different components suitable for different standards. Technical Parameters
1. Temperature measurement range: 0 ～ 400 ℃ Resolution: 0.1 ℃.
2. Volume detection range: 0 ～ 100ml resolution: 0.1ml.
3. Refrigeration method: circulating water or compressor refrigeration (DANFOSS)
4. Initial distillation time: 5-10 minutes (user-defined).
5. Operation mode: manual
6, data parameters: digital display display readings
7. Operating environment: ambient temperature is 15 ～ 45 ℃, relative humidity is less than 80% RH.
8. Power supply: AC220V ± 10%, 50 ± 2Hz.
Introduction
The WM562C manual distillation range tester complies with the national standard GB / T 6536 "Determination of Distillation of Petroleum Products". WM562C manual distillation range tester is widely used in petroleum, chemical, metallurgy, power, transportation, commodity inspection and scientific research departments.
