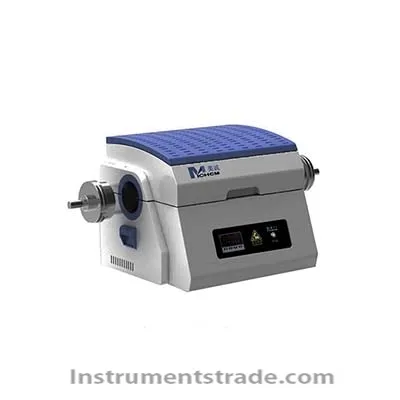

TF1-60 series open vacuum tube furnace for Crystal annealing

Product ID:SYJRGZsyl044

Price: Please inquire PDF Format
Supply Ability:60 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberTF1-60
    Brand NameANHEMEICHENG
    Payment TermsT/T, paypal
    TF1-60 series open vacuum tube furnace

    Introduction:
    This series of tube furnaces provides heating experiments for elemental analysis, physical measurement, powder sintering, etc. under the experimental conditions of vacuum, controlled atmosphere and high temperature for universities, research institutes and industrial and mining enterprises. It is also used in new materials and new processes such as semiconductors, nano- and carbon fibers.
    Features:
    1. Imported fiber material, open furnace structure, embedded heating element, uniform furnace temperature, fast heating rate, rapid heating in 15 minutes, low energy consumption, energy saving and environmental protection, 60% energy saving than traditional electric furnace.
    2. Intelligent PID control, high temperature control accuracy, over temperature protection, programmable control system.
    3. Perfect gas circuit device, with micro-adjustable function of inlet and outlet gas, instrument pressure display in the tube, clear at a glance, reliable multi-ring sealing technology, quick connection flange for easy operation.
    4. Using air insulation technology, the surface temperature of the furnace body is low and the use is safer.
    5. The electric furnace is integrated with the controller and is easy to operate.
    6. The appearance is fashionable and novel, and the design is humanized.
    Technical Parameters:
    Model: TF10-06
    Furnace tube size (outer diameter x inner diameter x length): 60 × 54 × 1000 mm
    Working voltage: single phase AC220~240V, 50/60Hz
    Rated power: 2.5KW
    Heating element: HRE superalloy
    Working temperature: Maximum temperature: 1100 °C Working temperature: 1000 °C
    Heating zone: Heating zone length: 440mm
    Constant temperature zone length: 150mm
    Control method: PID control
    Intelligent 30-segment programmable
    With over temperature and break alarm function
    Temperature control accuracy: ±1 °C
    Sensor: K-type thermocouple
    Expansion port: replaceable KF-25 interface or Φ6.35mm double ferrule connector
    Vacuum degree: Bipolar rotary vane mechanical pump: 10-2 torr.
    Molecular pump unit: 10-5 torr.
    Leakage rate <5 mtorr / min.
    Dimensions (W × D × H): 650 × 500 × 520 mm
    Weight: 42Kg
  • Introduction:
    This series of tube furnaces provides heating experiments for elemental analysis, physical measurement, powder sintering, etc. under the experimental conditions of vacuum, controlled atmosphere and high temperature for universities, research institutes and industrial and mining enterprises. It is also used in new materials and new processes such as semiconductors, nano- and carbon fibers.
