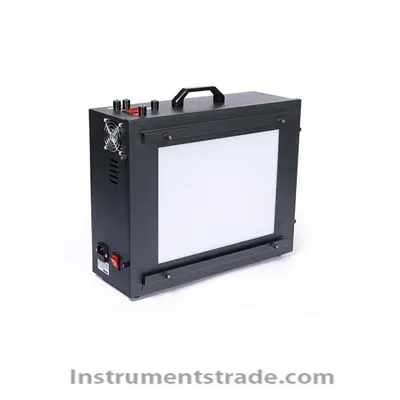

T259000 high illumination / color adjustable temperature transmissive light box
Introduction: T259000 high illumination/colorable temperature transmissive light box is a newly developed camera test special light box developed by Shenzhen Sanenshi Technology Co., Ltd. This product adopts high power, high illumination, no stroboscopic, long life, stable color temperature LED light source, providing professional lighting environment for camera lens evaluation system. T259000 high illumination/colorable temperature transmissive light box mainly consists of: box, handle, test card slot, transmissive panel, high illumination low illumination shift switch, dimming knob (high illumination and low illumination knob, low illumination knob included : coarse and fine adjustment knobs, test card fixing screws, power sockets, power switches and other components. Features: 1. Transmissive surface uniformity >90%. 2. Color temperature is adjustable, color temperature adjustable range: 2300K--9000K 3. Illumination adjustable, dimming range: 0-120000 Lux, dimming high illumination dimming file and low illumination dimming file. Among them, the low illumination dimming file includes two dimming knobs, which are thick and thin, and the dimming is more precise. 4. Light color is stable, no stroboscopic, and the life is more than 10,000 hours. Technical Parameters: 1. Light box dimensions (Figure 2): 410 length mm * width 145 * height 330mm. 2. Light box transmission surface size: 290 length mm * height 220mm. 3. Test card slot size: 360 length mm * 8 width mm * height 285mm. 4. Operating environment: 0-28 ° C, relative humidity below 85% (non-condensing). 5. Input voltage: AC110-240V 2.2A 50/60Hz maximum power consumption 240W. 6. Net weight: 7.2kg.
Introduction: T259000 high illumination/colorable temperature transmissive light box is a newly developed camera test special light box developed by Shenzhen Sanenshi Technology Co., Ltd. This product adopts high power, high illumination, no stroboscopic, long life, stable color temperature LED light source, providing professional lighting environment for camera lens evaluation system. T259000 high illumination/colorable temperature transmissive light box mainly consists of: box, handle, test card slot, transmissive panel, high illumination low illumination shift switch, dimming knob (high illumination and low illumination knob, low illumination knob included : coarse and fine adjustment knobs, test card fixing screws, power sockets, power switches and other components.
