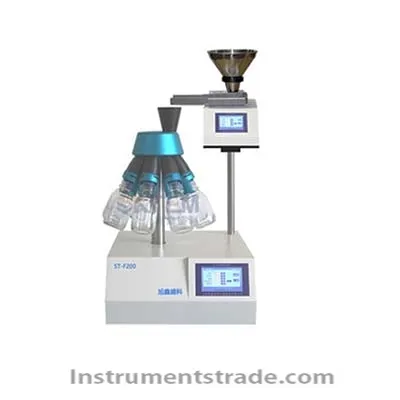

ST-F200 Rotary Sampler Introduction
The ST-F200 Rotary Sampler is an instrument that divides an entire sample into several small samples. Each sample has the same physical and chemical properties and can represent the properties of the overall sample. The sample flows directly into the receiving container from an eccentrically placed sampling funnel. The rotary sampler is currently the most accurate sample separation instrument. Suitable for sample and sample reduction; electronics, engineering, coal, coke, rock minerals, glass, plants, agricultural products, materials, building materials, pharmaceuticals, ceramics, food, spices, cement, etc. Features
LCD touch screen operation mode, preset time, speed, injection speed, easy and fast operation
High sampling accuracy and representative results
A variety of sample vials are available to meet different experimental needs
The sampling time is accurate to the second, and the result is reproducible
Configure the synchronized autosampler for automated feeding and fully automate the entire sampling process
The sample bottle is designed for quick and easy disassembly and assembly.
Compact design, no maintenance required
The instrument has RS232 data transmission interface, which is convenient for software program upgrade and maintenance of the instrument.
The instrument is equipped with a strong magnetic anti-interference system, and the instrument runs more stably. Technical Parameters
Feed size: ≤ 12mm
Number of samples: 6, 8, and 10
Batch processing capacity: ≤5000ml
Storage program: 10 kinds of storage programs
Time setting: 1s～99min59s (liquid crystal display)
Speed: 20~150r/min (liquid crystal display)
Vial volume: 25, 30, 50, 100, 250 and 500ml
Power data: AC 220V±10% 50Hz
Introduction
The ST-F200 Rotary Sampler is an instrument that divides an entire sample into several small samples. Each sample has the same physical and chemical properties and can represent the properties of the overall sample. The sample flows directly into the receiving container from an eccentrically placed sampling funnel. The rotary sampler is currently the most accurate sample separation instrument. Suitable for sample and sample reduction; electronics, engineering, coal, coke, rock minerals, glass, plants, agricultural products, materials, building materials, pharmaceuticals, ceramics, food, spices, cement, etc.
