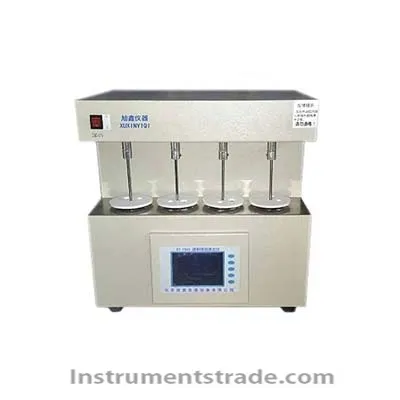

ST-1543 liquid phase corrosion tester Introduction
ST-1543 liquid phase corrosion tester is designed and manufactured according to GB / T11143 and ASTM D665 regulations. It is an instrument for measuring the corrosion ability of metals and evaluating the anticorrosive performance of additives when water is contained in lubricating oil, hydraulic oil, turbine oil and other oils Achieve high-precision constant temperature control, convenient experimental operation, etc., can be widely used in power, petroleum, chemical, commodity inspection, colleges and scientific research departments.
Feature
◆ LCD display temperature and timing time, easy to operate
◆ Simultaneous determination of 4 samples, 4 groups of channels can set experimental parameters independently
◆ Precision platinum resistance measuring element, PID self-tuning temperature control technology to achieve high-precision constant temperature control
◆ Stirring motor adopts imported, stable and uniform speed, long service life
◆ Full Chinese / English interface display (optional)
Technical Parameters
Adaptation standard: GB / T11143 ASTM D665
Temperature control range: room temperature to 100 ℃
Temperature control accuracy: ± 0.5 ℃
Resolution: 0.1 ℃
Number of test holes: four holes
Temperature control time: 0 ～ 99 hours
Sample stirring: 1000 ± 20 rpm
Water bath volume: 25L (stainless steel inner bath)
Display mode: LCD display
Power: ≤2500W
Ambient temperature: 5 ℃ ～ 45 ℃
Relative temperature: 10% ～ 80% Rh
Power supply voltage: 220V ± 10% 50Hz
Dimensions: 510mm * 330mm * 750mm
Weight: 25KG
ST-1543 liquid phase corrosion tester is designed and manufactured according to GB / T11143 and ASTM D665 regulations. It is an instrument for measuring the corrosion ability of metals and evaluating the anticorrosive performance of additives when water is contained in lubricating oil, hydraulic oil, turbine oil and other oils Achieve high-precision constant temperature control, convenient experimental operation, etc. ST-1543 liquid phase corrosion tester can be widely used in power, petroleum, chemical, commodity inspection, universities and scientific research departments.
