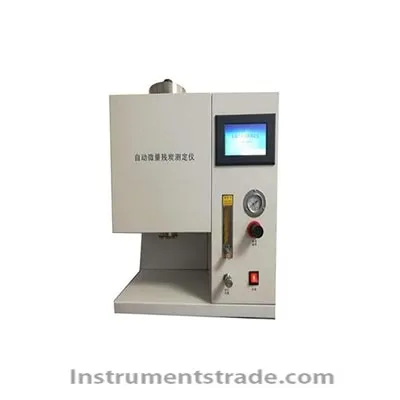

SH109 automatic carbon residue measuring instrument

Product ID:HZSYctsy011

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSH109
    Brand NameSHANDONGSHENGTAI
    Payment TermsT/T, paypal
    Introduction:
    SH109 automatic carbon residue measuring instrument is designed and manufactured according to the standard requirements of GB/T 17144-1997 "Residue determination method for petroleum products (micro method)", "ASTM D4530" and "ISO 10370:1993". It has the characteristics of beautiful appearance and convenient operation. The test results are consistent with the GB/T268 (Kang's) test results.
    Features:
    1. The color LCD touch screen automatically calculates the optional printing function, and the motherboard has a communication interface.
    2. The program is controlled by the full heating process, the heating rate is automatically controlled, the set temperature is automatically controlled, and the temperature control is stable.
    3. Display the instrument in a state of "purge", "heating", "constant temperature"
    Technical Parameters :
    Measuring range: 0.10% (m/m) - 30.0% (m/m)
    Temperature range: room temperature - 500 ° C
    Constant temperature accuracy: 500 ° C ± 2.0 ° C constant temperature 15 min
    Air consumption: standard nitrogen bottle with a pressure of 14700 kPa (150 kg/cm2)
    Set time error: <0.1s
    Pressure adjustment range: 0kPa (0kg/cm2) - 392kPa (4kg/cm2)
    Combustion chamber size: Φ85mm×105mm
    Waste collection bottle: 200ml
    Heater power: 1000W
    Dimensions: 230 × 320 × 425mm
    Flow adjustment range: 100ml/min-1000ml/min; 150ml/min and 600ml/min automatic switching
    Working power supply: AC220V±10%, 50Hz



  • Introduction:
    SH109 automatic carbon residue measuring instrument is designed and manufactured according to the standard requirements of GB/T 17144-1997 "Residue determination method for petroleum products (micro method)", "ASTM D4530" and "ISO 10370:1993". It has the characteristics of beautiful appearance and convenient operation. The test results are consistent with the GB/T268 (Kang's) test results.
