Seeker Series 3D Laser radar

Product ID:GJGjgleida008

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberSeeker Series
    Brand NameSUTENGJUCHUANG
    Payment TermsT/T, paypal

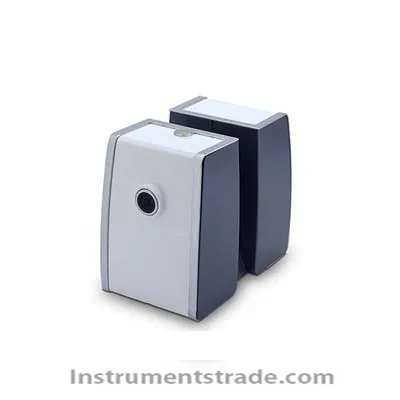

    Seeker Series 3D Laser radar
    Introduction:
    The Seeker Series is a fully self-developed 3D laser radar from RoboSense.
    Through high-speed laser scanning, the Seeker series acquires array geometry image data of objects or terrain surfaces in the form of point clouds. Seeker users can easily obtain accurate 3D documents without damaging the eyes at different times and places. data.
    For the needs of different industries and scenarios, we continue to develop customized professional software. Make your life more enjoyable.
    Technical Parameters:
    Supply voltage: Built-in power supply DC 24.9 V
    Power consumption: 10W
    Continuous working hours: 3 hours:
    Laser wavelength: 660 nm
    Laser rating: Class 1 laser
    Measuring range: 0.2m -15m (90% reflectivity) / 0.2m - 4m (10% reflectivity) / 0.2m - 35m (mirror)
    Anti-light interference capability: >80,000 Lux
    Measurement resolution: 1mm
    Ranging error: ±2mm
    Vertical field of view: -150°~150°
    Horizontal view: 360°
    Single image data volume: 30 million points
    Measuring speed: 250,000 points / sec
    Camera resolution: 8 million
    Working environment: -10 ° C ~ 50 ° C, humidity < 85%
    Storage environment: -20 ° C ~ 70 ° C
    Noise: < 25 dB
    Protection level: IP64
    Weight: about 3kg
    Dimensions: 215 mm × 130 mm × 286 mm
    Scanner control: PC software and USB cable
  • Introduction:
    The Seeker Series is a fully self-developed 3D laser radar from RoboSense.
    Through high-speed laser scanning, the Seeker series acquires array geometry image data of objects or terrain surfaces in the form of point clouds. Seeker users can easily obtain accurate 3D documents without damaging the eyes at different times and places. data.
    For the needs of different industries and scenarios, we continue to develop customized professional software. Make your life more enjoyable.
