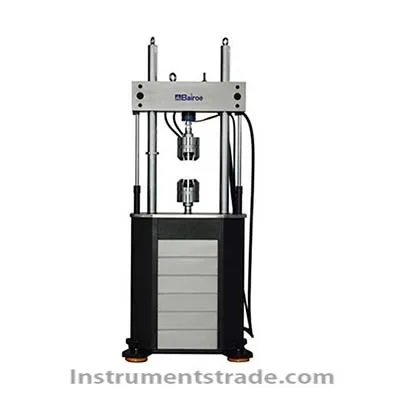

PLW-100 electro hydraulic servo fatigue testing machine for Metal material fatigue test

Product ID:WSHpl 003

US$0.00 ~ US$1.00 PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberPLW-100
    Brand NameYM
    Payment TermsT/T, paypal
    Brief Introduction
    For metallic materials and components, rubber spring, shock absorber in the sine wave, triangle wave, trapezoidal wave, Fang Bo, oblique wave state of the tension compression fatigue test, fracture toughness, fatigue crack propagation tests, low cycle fatigue test, three point bending fatigue test, CT test, fasteners axial fatigue test etc..
    The test machine with high stiffness frame, gapless structure design, hydraulic lifting beam, in order to adjust the test space, precision guidance of the actuator and intelligent test software TestLive to ensure complete and accurate test results.
    Features
    1. Use "CPU + DSP" dual control, bus slot type architecture, convenient extension, excellent dynamic performance.
    (2) and the computer communication USES the front-end ports (RJ45), high speed of data transmission, to achieve real-time data processing software.
    3. High speed sensor data acquisition card, ensure that the dynamic control of high speed response and precision of data sampling.
    4. The displacement, load and deformation of the closed loop control, achieve smooth control switch between each other.
    5. The built-in function generator, sine wave, triangle wave, trapezoidal wave, oblique wave control.
    6. Each channel synchronous sampling and measurement, the test results more real.
    7. Closed loop control, high frequency rapidly, to achieve complete dynamic control characteristics.
    8. Electrical design satisfies the requirement of EMC, safety standards.
    9. Sampling and control frequency stability, ensure the accuracy of the data and control.
    10. Has the limit protection, the full range of overload protection function.
    Technical parameters
    Maximum force test: 100 kn
    The force measuring range: 2% ~ 100%
    Force value accuracy: plus or minus 0.5%
    Piston displacement accuracy value: plus or minus 0.5%
    Piston stroke: + 75 mm (can be customized)
    The wave function generator: sine wave, triangle wave, trapezoidal wave, oblique wave
    Test frequency range: 0.01 ~ 100 hz
    Control mode: three kinds of load, displacement and deformation control mode, can smooth transition
    Main frame format: two columns
    Column spacing: 460 mm
    Test space: 700 mm
    host size: 640 mm
    hydraulic installation dimensions: 1400 mm * 1000 mm * 1000 mm
    Weight: 900 kg


  • Brief Introduction

    For metallic materials and components, rubber spring, shock absorber in the sine wave, triangle wave, trapezoidal wave, Fang Bo, oblique wave state of the tension compression fatigue test, fracture toughness, fatigue crack propagation tests, low cycle fatigue test, three point bending fatigue test, CT test, fasteners axial fatigue test etc..
