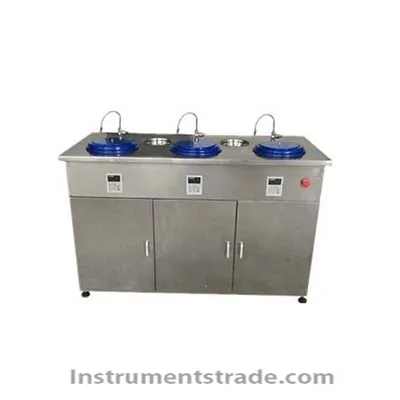

MP-3A metallographic grinding and polishing machine

Product ID:SYZYXJpm026

Price: Please inquire PDF Format
Supply Ability:120 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberMP-3A
    Brand NameDICHENGLIANSHUO
    Payment TermsT/T, paypal
    MP-3A metallographic grinding and polishing machine
    Introduction:
    The MP-3A metallographic grinding and polishing machine provides easy manual operation for daily grinding and polishing. It is designed to achieve fast and reliable manual grinding and polishing in the laboratory or production line, and can perform inspection operations at any time. The two work disks are controlled by separate switches that allow two people to operate simultaneously; the rugged stainless steel housing is aesthetically pleasing, impact resistant and corrosion resistant. The high standard technology of the equipment gives it a quiet, smooth running and optimum preparation.
    Features:
    1. Rugged stainless steel housing
    2, individually controllable work disk, allowing 3 people to use independently
    3, the working plate speed is controlled by the knob, which is more convenient
    4, the work plate can be forward or reverse,
    5, emergency stop button, in line with safety standards
    6, adjustable outward hose for easy flushing
    7, cabinet structure, with storage space
    8, adjust the speed through the knob
    Technical Parameters:
    Model: MP-3A
    Body type: floor cabinet
    Body structure: cabinet double disc + cleaning sink
    Control method: double disc dual control (two discs are controlled separately)
    Steering selection: double steering (forward and reverse)
    Grinding disc speed: speed control (100-1500 rev / min) + fixed speed, other speed can be set according to requirements
    Host power: 1650W
    Speed ​​control: AC drive control
    Grinding disc diameter: 230mm
    Dimensions: 1500X700X600mm
    Power supply: 220V
    Metallographic sandpaper: 240, 600, 1000, 1500# (other specifications 400, 2000#, etc.) is suitable for the grinding of conventional metal samples.
    Diamond grinding disc: 240, 600, 1000, 1500# (other specifications 400, 2000 #, etc.) is suitable for grinding of super hard material samples.
    Diamond sandpaper: Particle size: 45-0.3um (suitable for precision grinding and rough polishing of super-hard materials, such as ceramics, crystals, etc.).
    Polished fabric: woven material, velvet, wool, etc. (for special materials, it is also necessary to use multiple polishing processes such as rough polishing and fine polishing).
    Diamond polishing agent: Particle size: 40-0.5um (a wide range of polishing accessories, suitable for polishing various types of materials).
    Diamond suspension: Particle size: 40-0.5um (a wide range of polishing accessories, more suitable for automatic grinding and polishing machine).
    Alumina polishing powder: Particle size: 30-0.5um (suitable for polishing carbon steel samples).
    Magnetic grinding disc: It is easier to change sandpaper and polishing cloth.



  • Introduction:
    The MP-3A metallographic grinding and polishing machine provides easy manual operation for daily grinding and polishing. It is designed to achieve fast and reliable manual grinding and polishing in the laboratory or production line, and can perform inspection operations at any time. The two work disks are controlled by separate switches that allow two people to operate simultaneously; the rugged stainless steel housing is aesthetically pleasing, impact resistant and corrosion resistant. The high standard technology of the equipment gives it a quiet, smooth running and optimum preparation.
