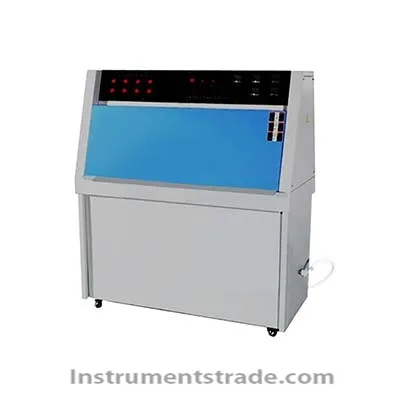

LRHS - NZY ultraviolet aging test chamber for Weather resistance test

Product ID:WHzw005

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberLRHS - NZY
    Brand NameYM
    Payment TermsT/T, paypal
    Brief introduction:
    Uv resistant climate chamber with fluorescent uv lamp as light source, by simulating natural sun's ultraviolet radiation and condensation, accelerated weathering test was carried out on the material, in order to obtain the result of the material weatherability. Can simulate the natural climate in the ultraviolet, the rain, high temperature, high humidity and condensation, the darkness, such as environmental conditions, by reproduce these conditions, merged into a loop, and have it automatically complete cycles.
    Features:
    1. Connected by black aluminum plate temperature sensor;
    2. Use the blackboard instrument control heating temperature, the temperature is more stable.
    3. The eight power rating is 40 w uv fluorescent lamp as light source. Uv fluorescent tube, distributed in both sides of the machine.
    Each side 4. 4
    5. Lid for two-way flip, open and close easily
    6. The actual studio made up of test samples and stent body wall, trapezoid
    7. 14 s series intelligent TZN4 - South Korea autonics temperature controller, the control precision of 0.1 ℃
    8. Light and condensation of independent control and alternate cycle control of time can be set up in one thousand hours
    Technical parameters:
    Model: LRHS - UVN
    Studio size: 450 * 1170 * 1170
    Installation dimensions: 700 * 1350 * 1350
    Temperature range: RT + 10 ℃ ~ 70 ℃
    Humidity range: p 95% RH
    When temperature fluctuation degree, plus or minus 0.5 ℃ (light)
    The distance between the tubes: 35 mm
    Samples and tube distance: 50 mm
    U.v. tubes: eight (American brand)
    Ultraviolet wavelengths: 290 nm to 400 nm
    Simulation of condensation: condensation system time is adjustable
    Uv light exposure, simulated lon time range: 1 ~ 99 h
    Support model: 300 * 75 (mm)
    Sample quantity: about 20 pieces
    Test time: 1 ~ 9999 h is adjustable
    Irradiance range: 50 w/m2 or less


  • Brief introduction:
    Uv resistant climate chamber with fluorescent uv lamp as light source, by simulating natural sun's ultraviolet radiation and condensation, accelerated weathering test was carried out on the material, in order to obtain the result of the material weatherability.
