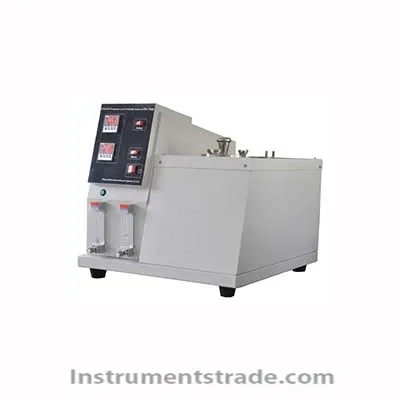

JF7325 Lubricating Oil Grease Evaporation Loss Tester
Introduction: The Lubricating Oil Grease Evaporative Loss Tester is suitable for detecting the evaporative loss of lubricating oil and lubricating grease. During the test, the lubricant sample placed in the evaporator is placed in a constant temperature bath at a specified temperature, and hot air is passed through the surface of the sample for 22 hours. Evaporation loss is calculated from the weight loss of the sample. Features: 1. The instrument is benchtop, including heating bath and flowmeter. There is a hole in the stainless steel cover, which can be put into the sample bottle; 2. Stainless steel structure with ceramic coating; 3. Environmentally friendly oil bath heating, reducing the damage of oil fume to the human body, high thermal insulation effect; 4. Stainless steel heater; 5. Flow meter, with needle valve, flow rate 0~2L/min; 6. Air filter with glass wool; 7. Microprocessor thermostat and PID control, digital display temperature, maximum temperature 0.1℃, Pt100 RTD temperature probe; 8. Operating temperature range: room temperature ~ 250°C; safety measures to prevent overheating or low liquid level; Technical parameter: Applicable standard: GB/T7325 ASTM D972 Temperature control method: imported PID digital temperature controller Temperature control degree: normal temperature~250±0.1℃ Heating method: oil bath heating Machine power: 2.5KW Working unit: 2 tubes Flow Control: High density flow meter Working power supply: AC220V/50Hz Timing method: digital display timer
Introduction: The Lubricating Oil Grease Evaporative Loss Tester is suitable for detecting the evaporative loss of lubricating oil and lubricating grease. During the test, the lubricant sample placed in the evaporator is placed in a constant temperature bath at a specified temperature, and hot air is passed through the surface of the sample for 22 hours. Evaporation loss is calculated from the weight loss of the sample.
