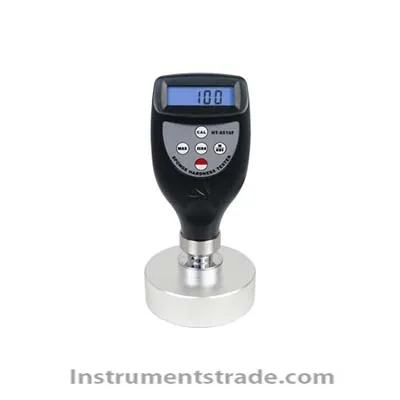

HT-6510F sponge hardness tester

Product ID:WQyd084

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberHT-6510F
    Brand NameGUANGZHOULANTAI
    Payment TermsTT,PAYPAL
    HT-6510F sponge hardness tester

    Introduction:
    The Shore F hardness tester is used to measure soft materials such as sponges. It is specially used to determine the hardness of soft foam materials, dolls, pillows and polyurethane foam rubber products.
    Features:
    1. Meet the following standards: "Rubber pocket hardness tester indentation hardness test method" GB/T 531-1999; "Plastic Shore hardness test method" GB/T 2411-80; DIN 53505; ISO 868; ISO 7619; ASTMD 2240 ; JISK7215.
    2. Average calculation function.
    3. Detected value latch function.
    4. Under-voltage alarm indication function.
    5. Use "USB data line output" to communicate with PC.
    6. Provide Bluetooth data output options.
    technical parameter:
    Display parameters: Hardness value/average value/** value
    Display range: 0~100HF
    Measuring range: 10~90HF
    Resolution: 0.1HF
    Accuracy: ≤±1HF
    Spring force: 455gf
    Styli diameter: 25mm
    Foot diameter: 80mm
    Low voltage prompt: √
    Automatic shutdown function: √
    Working environment: Temperature: 0~50ºC Humidity: <80%RH
    Power supply: 4 AAA batteries
    Size: 162*80*80*mm
    Weight (without battery): 250g
    Standard configuration: host
    Portable carrying case (B04)
    user's manual
    Optional accessories: USB connection cable and software
    Bluetooth adapter and software
  • Introduction:
    The Shore F hardness tester is used to measure soft materials such as sponges. It is specially used to determine the hardness of soft foam materials, dolls, pillows and polyurethane foam rubber products.
