Introduction
Using magnetic bead separation technology, the corresponding kit can be selected to automatically separate and purify high-purity nucleic acid structure from various varieties of materials such as blood and tissue cells. The design is exquisite in UV sterilization and heating, and the large-size touch screen is easy to operate. It is a powerful helper for clinical molecular detection and molecular biology laboratory research. Features
The standardization result is stable: the industrial-grade control system guarantees stable operation for 724 hours. The instrument has multiple built-in standard nucleic acid purification procedures, and can also be programmed according to the needs of the operator. Automated standard operation ensures stable experimental results and avoids manual errors
Fully automatic high-throughput: Automated nucleic acid extraction experiments, 32 samples can be processed at one time, and the nucleic acid speed is 4-5 times that of a single manual extraction.
Configuration new features: equipped with industrial-grade touch screen, UV sterilization lamp, temperature control system, making operation easier, safer experiment, fuller cracking, more thorough elution, and better results.
Safer to avoid pollution: Intelligent motion control, strict control of contamination between holes and holes. The disposable material extraction sleeve and the ultraviolet sterilization lamp are used to avoid contamination between different batches, and the risk of the operator contacting the harmful reagent is greatly reduced. Technical Parameters

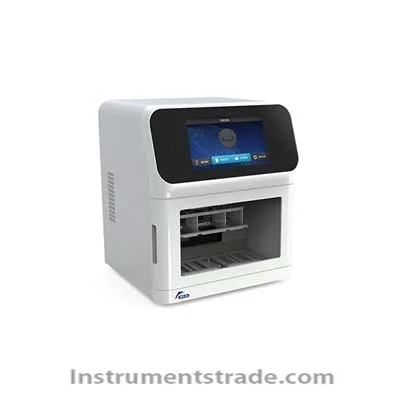

Product Name: Gene Pure Nucleic Acid Extractor
Model: Gene Pure- 32
Treatment volume: 20μl-1000μl
Sample throughput: 1-32
Magnetic bead recovery efficiency: ≥98%
Purification hole difference: Cv<3%
Cracking heating temperature: cracking heating temperature: room temperature ~ 120 ° C
Elution heating temperature: elution heating temperature: room temperature ~ 120 ° C
Oscillating mixing: multi-mode multi-speed adjustable
Disinfection/decontamination method (disinfection control): UV lamp built-in UV disinfection module
Reagent type: magnetic bead reagent
Operating system: 7*24 hours industrial grade
Control computer (operation interface): 10 inch LCD touch
Interface mode: support USB, WIFI (Bluetooth, NB-1OT wireless interface optional)
Program management: create, edit, delete mode programs, free and flexible editing extractor
Product shape: size 40cm x 42cm x 48cm
Weight: 25Kg
Use power: AC110~240V 50Hz/60Hz
Operating temperature range: 10 ° C ~ 40 ° C
Operating humidity range: less than 80%
