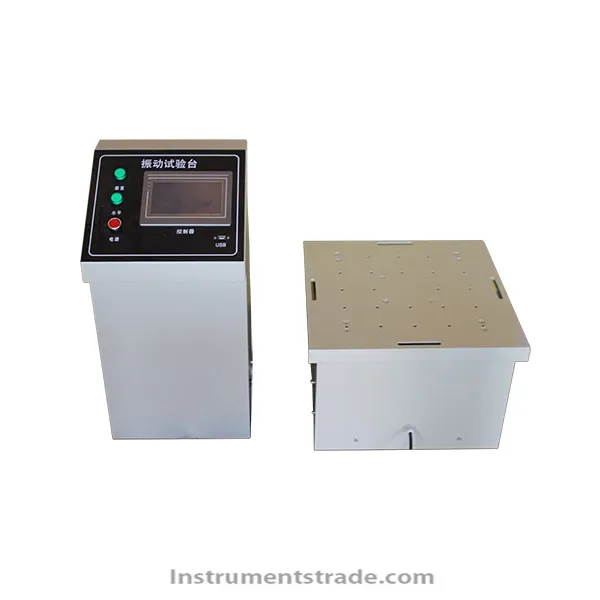

Four degree space vibration table Introduction
The four-dimensional vibration table is suitable for the vibration test of samples in laboratories and production lines of various universities, scientific research units, electronic components, components, electromechanical products, instruments, toys, medicine and food packaging industries. For example, quality identification test, reliability identification test, durability damage test, dynamic modal analysis, material property test, fatigue test, vibration prevention and improvement, etc. Simulate the vibration environment suffered by the product during manufacturing, assembly, transportation and use, and evaluate the vibration resistance and reliability of the product structure through the vibration test.
Technical Parameters
Maximum test load (kg): 100
Frequency range (0.01Hz): 1Hz ~ 600Hz
Amplitude: 0 ~ 5mm
Maximum acceleration: 20g
Vibration direction: vertical + horizontal (automatic four-degree space integrated machine shaker vertical and horizontal work on the same table)
Frequency modulation function: any frequency within the range of 1-600HZ
Frequency sweep: 1-600HZ can be set arbitrarily, real standard frequency sweep back and forth
Programmable function: 1-600HZ, 1-8 segments, each segment can be set arbitrarily frequency and time, can be cycled
Frequency doubling function (0.01Hz); multiplied by 8 segments ① low to high frequency ② high to low frequency ③ low to high and then low frequency / recyclable
Logarithmic function (0.01Hz): ① down to up frequency ② up to down frequency ③ down to up then down frequency-3 modes logarithmic / recyclable
Vibration waveform: sine wave (half wave / full wave)
Time control: any time can be set (in seconds)
Frequency precision: The frequency can be displayed to 0.01Hz, and the precision is 0.1Hz
Amplitude precision: the amplitude can be displayed to 0.01mm, and the control accuracy is 0.1mm
Power: 2.2Kw
Table size: L * H * W (cm) 50 * 1 * 50
Table size L * H * W (cm): vertical + horizontal (50 * 45 * 50)
Power supply voltage (V): 220V
Realized functions: sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithmic, time control
The four-dimensional space vibration table is suitable for the vibration test of samples in laboratories and production lines of various universities, scientific research units, electronic components, components, electromechanical products, instruments, toys, medicine and food packaging industries. The four-dimensional vibration table can simulate the vibration environment suffered by the product during manufacturing, assembly, transportation and use, and evaluate the vibration resistance and reliability of the product structure through the vibration test.
