DZY-023 Water Separation Tester for Petroleum and Synthetic Liquid

Product ID:HZSYkrh018

Price: US$1.00 ~ US$0.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDZY-023
    Brand NameDALIANZHINENGYIQIYIBIAO
    Payment TermsT/T, paypal

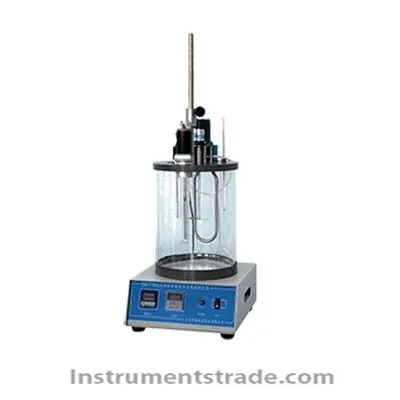

    DZY-023 Water Separation Tester for Petroleum and Synthetic Liquid
    Features
    1.Upper and lower structure, the control unit is in the lower part, and the test operation unit is in the upper part. The structure is reasonable and easy to operate.
    2.The instrument adopts an advanced PID self-tuning temperature control system. The control performance is stable and reliable. The user only needs to set the temperature control point temperature through the instrument. The instrument automatically realizes the fixed point temperature control, digital display, and accurate temperature control.
    3.Low-noise bath stirring motor and stainless steel stirring blades ensure even and stable bath temperature.
    4.The uniquely designed test tube jacket can firmly hold the test tube. There is also a slot on the jacket matched with the stirring motor to ensure that the stirring paddle is in the center of the test tube (it will not break the measuring cylinder when rotating at high speed), and the distance from the bottom of the test tube meets the requirements in GB / T7305.
    5.Specially designed compaction device of the stirring motor (the stirring motor can be placed at the end of the test), the installation and disassembly of the test parts are simple and fast.
    6.Multiple test holes, when one sample is in the test, other samples can be preheated first, greatly improving the use efficiency.
    7.Automatic timing (time can be set by yourself), when the time is up, it will automatically stop the stirring motor, start the stirring motor again, just press the stirring switch again.
    Technical parameters
    Working power: AC220V ± 10% 50Hz standard 10A plug
    Heating power: 2KW
    Temperature control range: room temperature ~ 100 ℃
    Temperature control accuracy: ± 0.1 ℃
    Speed ​​of stirring motor: 1500r / min ± 10r / min

  • DZY-023 oil and synthetic liquid water separation tester adopts advanced PID self-tuning temperature control system, the control performance is stable and reliable, the user only needs to set the temperature control point temperature through the instrument, the instrument automatically realizes the fixed point temperature control, digital display, control Warm and accurate. DZY-023 oil and synthetic liquid water separability tester adopts upper and lower structure, the control unit is in the lower part, and the test operation unit is in the upper part. The structure is reasonable and easy to operate.
