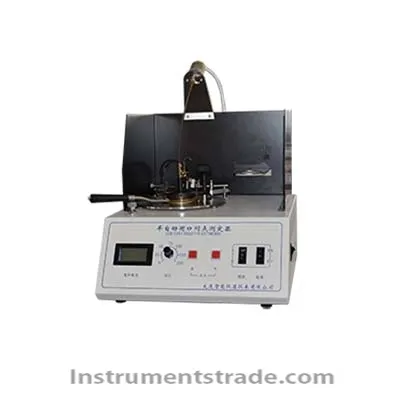

DZY-002B semi-automatic closed mouth flash point tester

Product ID:HZSYsdy0053

Price: Please inquire PDF Format
Supply Ability:80 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDZY-002B
    Brand NameDALIANZHINENGYIQIYIBIAO
    Payment TermsT/T, paypal
    DZY-002B semi-automatic closed mouth flash point tester
    Introduction
    DZY-002B semi-automatic closed mouth flash point tester uses the Pensky-Martin closed cup method to measure flammable liquids (such as: diesel, kerosene, insulating oil, fuel oil, etc.), liquids with suspended particles, and the surface tends to become Membrane liquid and other liquid flash points. This instrument is suitable for the determination of flash point values ​​above 40 ° C.
    Features
    1. The instrument is equipped with an ignition device for pulse discharge ignition, which is very safe to operate. It is safe and convenient to use the keys for ignition operation.
    2. The opening and closing of the lid of the experiment cup of the instrument and the start and stop of the stirring device are controlled by keys, which is very convenient for practical operation.
    3. The instrument is equipped with a semi-enclosed windscreen, which can reduce the impact of strong light and air flow on the experiment.
    4. The instrument's adding system adopts digital display voltage regulation and temperature control, and the heating rate can be adjusted according to demand.
    5. The instrument is equipped with a switch that selects the A flash point test method and the B flash point test method. The corresponding experimental method can be selected according to different experimental samples.
    Technical parameters
     Working power: AC220V ± 10% 50Hz standard 10A plug
    Heating power: 230W
    Electric furnace heating voltage: adjustable
    Motor rotation rate: A method-105r / min ± 10r / min B method-250r / min ± 10r / min
    Dimensions: 340 × 390 × 330 (mm)

  • Introduction
    DZY-002B semi-automatic closed mouth flash point tester uses the Pensky-Martin closed cup method to measure flammable liquids (such as: diesel, kerosene, insulating oil, fuel oil, etc.), liquids with suspended particles, and the surface tends to become Membrane liquid and other liquid flash points. This instrument is suitable for the determination of flash point values ​​above 40 ° C.
