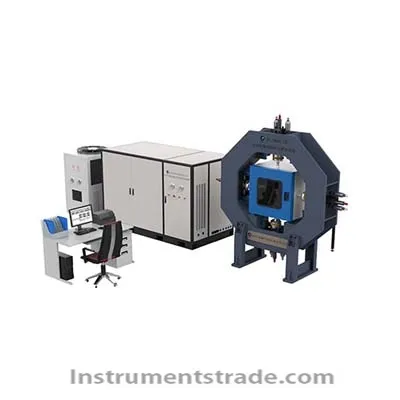

DPL-9010-2 biaxial fatigue test system

Product ID:WSHpl016

Price: Please inquire PDF Format
Supply Ability:20SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberDPL-9010-2
    Brand NameYIMA
    Payment TermsT/T, paypal
    Introduction:
    The system can meet the high and low temperature cross-specimen biaxial fatigue test, single-axis plate fatigue test specimens, cylindrical specimen tension and compression fatigue test. Mainly used in biological tissue, medical equipment, textiles, rubber materials, plastic film, metal, composite materials. The testing machine has a concentric loading adjustment mechanism, with a temperature compensation system of hydraulic fixtures.
    Technical Parameters:
    Model DPL-9010/2 type
    The number of control channels 4 channels
    3 loading force
    Large static loading force: 100KN
    Dynamic loading force: 100KN
    4. Actuator
    Quantity: 4
    Loading frequency: 0.01Hz ~ 150Hz
    Telescopic speed: 0 ~ 340mm / s stepless adjustable
    Dynamic Characteristics: Load (± 100kN) × Amplitude (± 0.5mm) × Frequency (150Hz)
    Load accuracy: ± 0.5% FS
    Displacement accuracy: ± 0.5% FS
    5. High and low temperature environment temperature -196 ~ 350
    6. Specimens
    Work space: 840mm x 840mm
    Test sample
    Cross sample: test width ≤ 50mm, specimen length ≤ 350mm, thickness ≤ 30mm
    Square sample: length ≤ 350mm, thickness ≤ 30mm
    Rod samples: Standard tensile and compression fatigue specimens
    Test control methods: force, displacement, time, loading rate, hierarchical loading, one-way loop loading
    8. Host Dimensions: 3800mm (L) X2300mm (W) X3800mm (H)

  • Introduction:
    The system can meet the high and low temperature cross-specimen biaxial fatigue test, single-axis plate fatigue test specimens, cylindrical specimen tension and compression fatigue test. Mainly used in biological tissue, medical equipment, textiles, rubber materials, plastic film, metal, composite materials. The testing machine has a concentric loading adjustment mechanism, with a temperature compensation system of hydraulic fixtures.
