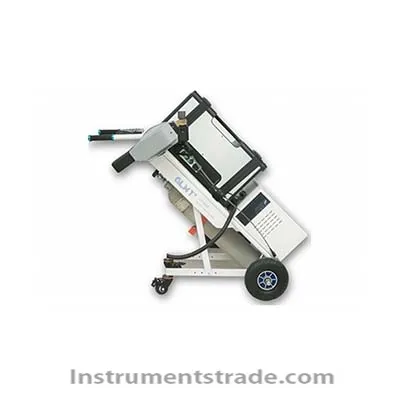

CX-9900 Portable Direct Reading Spectrometer for On-site metal analysis

Product ID:FGgdzd033

US$0.00 ~ US$1.00 PDF Format
Supply Ability:50 SETS/MON
Port:SHENZHEN
share:
  • Product Introduction
  • Consulting
  • Model NumberCX-9900
    Brand NameWUXICHUANGXIANG
    Payment TermsTT,PAYPAL
    CX-9900 Portable Direct Reading Spectrometer

    Introduction:
    The CX-9900 spectrometer adopts a laboratory instrument optical system, which has been specially modified to meet the needs of portable spectrometers. It can receive all element spectral lines in the analysis wavelength range (170nm-530nm) with precision and stability. Individual components in the optical system, such as gratings or detectors, are well secured, making the instrument dust-proof, shock-resistant, and robust.
    CX-9900 mobile direct reading spectrometer has high analysis accuracy, convenient operation, flexible application, good stability and light weight. It can directly perform metal analysis on other large metal components that are inconvenient to cut.
    1. Identification, sorting and composition analysis of alloy materials in the process of factory incoming materials and product quality control.
    2. Analysis of basic structural materials of petrochemical equipment.
    3. Component analysis in the process of scrap metal recycling.
    Features:
    1. Optical system:
    The CX-9900 adopts an optical system that was only used in laboratory instruments in the past, and has been specially modified to meet the needs of portable spectrometers. It can receive all element spectral lines in the analysis wavelength range (170nm-200nm) (200nm-650nm) with a pixel resolution of 20pm.
    2. Fire the gun:
    Standard excitation guns can use spark light sources for accurate composition analysis of alloys including element C, or arc light sources for material sorting and grade identification. A specially designed small optical system can be used to analyze P, S, B, Sn and As in steel. The plug-in interface makes the change of light source very easy and fast.
    3. Electrodes and Fixtures:
    The replacement of electrodes and fixtures is simple and quick without the use of tools. Switching from spark light source to arc light source takes only a few seconds. Equipped with a variety of fixtures to adapt to samples of different shapes and sizes, it is very convenient to inspect pipes, wires, small samples and other special shaped surfaces
    4. interface:
    The CX-9900 mobile spectrometer provides USB interface, printer, display and network interface.
    5. battery pack
    The high-efficiency light source with power-saving function guarantees the CX-9900 mobile spectrometer, and the CCD can be powered by a battery pack. A single charge can fire hundreds of times. The battery can be carried in a cart or backpack and can be easily connected to the instrument through a socket. This allows the instrument to be used in almost all situations.
    6. Trolley:
    The trolley can be integrated with the instrument to ensure the safety of the instrument and the flexibility of movement. The ergonomic design allows the instrument to be operated at a convenient location and height. If necessary, the cart can be divided into three parts for easy transportation.
    7. ICAL
    ICAL (Intelligent Calibration Function) logic system that displays and controls the status of the instrument, making the instrument immune to changes in the external environment, which eliminates the need for recalibration due to changes in location and temperature.
    8. APF extension software:
    The APF extension software can automatically identify the matrix of the sample under test and automatically select the applicable analysis program. This feature can save users a lot of time when detecting unknown metals.
    9. WINDOWS software:
    WINDOWS provides a variety of support functions and options, and the operation is very simple. A diagnostic control system supported by hardware and software ensures correct operation by the instrument operator.
    10. Extensibility:
    Changing and updating the analysis program of the CX-9900 CCD is easier than any other spectrometer. ICAL logic system and advanced CCD technology make the instrument more convenient and easy to adapt to the changed analysis requirements, adding matrix and elements only need to add software, no need to change hardware.
    Technical parameter:
    Optical system construction: Paschen-Runge structure
    Roland circle radius: 350mm
    Wavelength range: 170nm-200nm, 200nm-650nm
    Sensor: Multiple high-performance line arrays
    Pixel Resolution: 20pm
    Full Spectrum Technology: Covers the full range of elemental analysis
    Type: HEPS digital spark light source
    Excitation frequency: 100-1000Hz
    Current: 1-80A
    Excitation voltage: >8000V
    Detection matrix: iron-based, aluminum-based, copper-based, zinc-based, nickel-based, magnesium-based, lead-based, etc.
    Host size: 600mm(L) *345mm (W) *345mm(H)
    Weight: 25kg
    Standby temperature: 0°C-40°C
    Operating temperature: 10°C-40°C good heat dissipation, 100 times of continuous excitation, the temperature increase of the excitation table does not exceed 5°C
    Relative humidity: <85%
    Power supply: AC 220V/50Hz
    Power: Excitation 300W, Standby 100W
    Argon quality: 99.999%
    Argon consumption: Jet electrode technology reduces argon consumption and improves argon use efficiency
