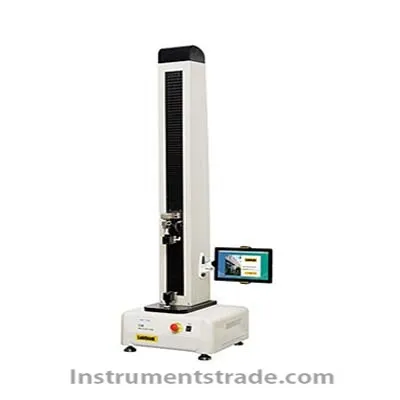

C610H Auto Tensile Tester
Introduction
C610H Auto Tensile Tester is professionally applicable to measurement of tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force, pulling force and low speed unwrapping force as well as other properties of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tapes, label stickers, medical plasters, release paper, protective films, combined caps, aluminum foils, diaphragms, back sheets, non-woven fabrics, rubber and paper, etc.
Test Standard: ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, QB/T 2358, QB/T 1130

Feature
Professional Test Modes to Meet Various Testing Demands
Multiple independent test modes including tensile test, peel test, tearing test, heat seal test, tensile test at fixed elongation, and compression test, etc. at users’ choice
The instrument supports bidirectional testing modes and test speed can be adjusted freely
Intelligent designs of over-travel protection, overload protect and automatic position reset guarantee safe test operation of the users

Excellent Testing Mechanism & Improved Test Accuracy
Force measuring system is supplied by top global supplier, which ensures the testing accuracy of better than 0.5% of full scale and guarantees accurate test results and good repeatability. Multiple test ranges can be selected freely.
Servo control system powered by top global supplier and the patented high-precision ball screw multi-point positioning technology provide displacement accuracy of better than 0.5% of full scale and infinitely variable speed, facilitate the instrument with simplified and stable operation.
Global renowned brand pneumatic control system supports pneumatic specimen clamping, which avoids the specimen slipping and guarantees the accuracy of test data

High-end, Secure and Easy-to-Use Embedded Computer-controlled System
Large size touch screen tablet for better viewing and easy operation
Brand new software and system provide smooth and simplified operating experience
The system supports displaying and comparison analysis of group of test data as well as unit conversions of test results.
Labthink’s unique data security design by separating the test data from the computer, totally avoids the system software malfunctions caused by computer virus or faulty operations, conforms to the requirements for data traceability of China GMP (optional).
The instrument is equipped with USB ports and Internet ports for convenient data transmission.
Unique DataShieldTM system supports centralized management of test data and can be connected to other information management system.

Technical Specifications

Specifications	C610H
Load Cell Capacity	500 N (standard) 50 N, 100 N, 250 N, 1000 N (optional)
Accuracy	±0.5% of indicated value (2%FS~100%FS) ±0.01%FS (0% ~ 2%FS)
Resolution	0.001 N
Test Speed	0.05 ~ 500 mm/min
Speed Accuracy	±0.5% of indicated value (1%~100% of maximum speed)
Number of Specimens	1
Specimen Width	30 mm (Standard Grip)
Specimen Width	50 mm (Optional Grip)
Clamping Way	Pneumatic Specimen Clamp
Gas Supply	Air (outside of supply scope)
Gas Supply Pressure	0.5 MPa~ 0.7 Mpa (72.5psi～101.5psi)
Stroke	1000 mm
Instrument Dimension	365 mm (L) × 472 mm (W) × 1740 mm (H)
Power Supply	220VAC±10% 50Hz / 120VAC±10% 60Hz
Net Weight	110 kg
